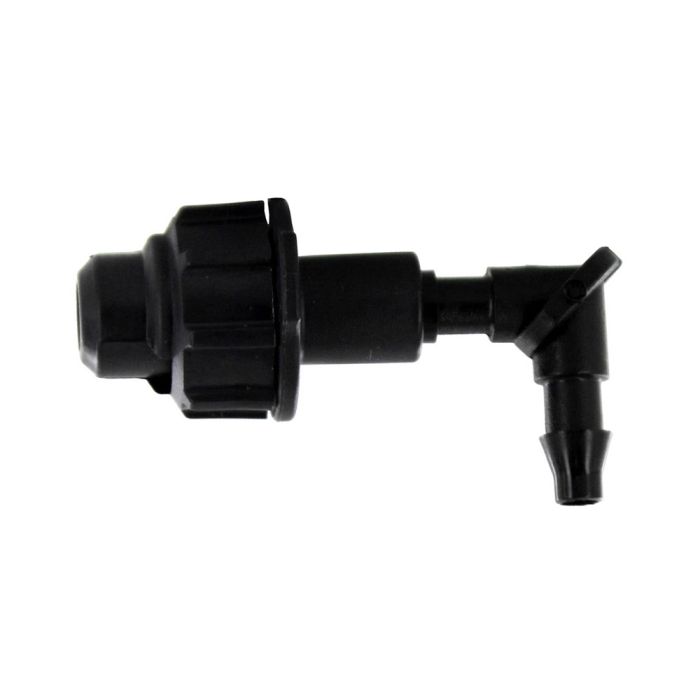

This mister has a very fine spray with a flow rate of 1 GPH and coverage of up to 8" full circle when used with the stabilizer stake and barbed elbow. Ideal use of the mister is on 8" to 24" diameter pots, and baskets with the mister hung upside down 4" to 5" above the plant using the 6" stabilizer. For larger baskets hang the mister from a 1/4" drip micro tubing 8" to 12" above the basket for up to 2' in diameter.
Flow Rate vs Pressure
| Nozzle color | Purple | Black | Green | Brown | Gray |
| Nozzle size (IN) | 0.010 | 0.0.13 | 0.020 | 0.025 | 0.035 |
| Flow rate | 0.8 | 1.0 | 1.5 | 2.0 | 3.0 |
| Diameter (FT) | 2.5 | 2.5 | 33.5 | 3.5 | 4.0 |
| Misting angle | 70° | 70° | 70° | 70° | 70° |
Flow Rates (GPH)
| 35 PS | 0.76 | 0.85 | 1.36 | 1.68 | 2.40 |
| 40 PSI | 0.80 | 0.91 | 1.49 | 1.83 | 2.61 |
| 45 PSI | 0.84 | 0.98 | 1.52 | 1.91 | 2.78 |
| 50 PSI | 0.85 | 1.04 | 1.58 | 2.02 | 2.91 |
| 55 PSI | 0.87 | 1.07 | 1.64 | 2.09 | 3.02 |
| 60 PSI | 0.90 | 1.14 | 1.71 | 2.18 | 3.17 |
| 65 PSI | 0.91 | 1.17 | 1.74 | 2.26 | 3.25 |
| 70 PSI | 1.01 | 1.26 | 1.81 | 2.31 | 3.42 |
| Product Type | Micro Foggers |
|---|---|
| Warranty | 3 Years |
| Size | 1/4 in. |
| Flow Rate | 1.5 GPH |
