12 AWG Underground Lighting Wire By The Foot | 12-2-LIGHTING-WIRE-FT

Free Shipping on Orders over $149
Sales Price $0.85 Our Price $1.35 You save 37%

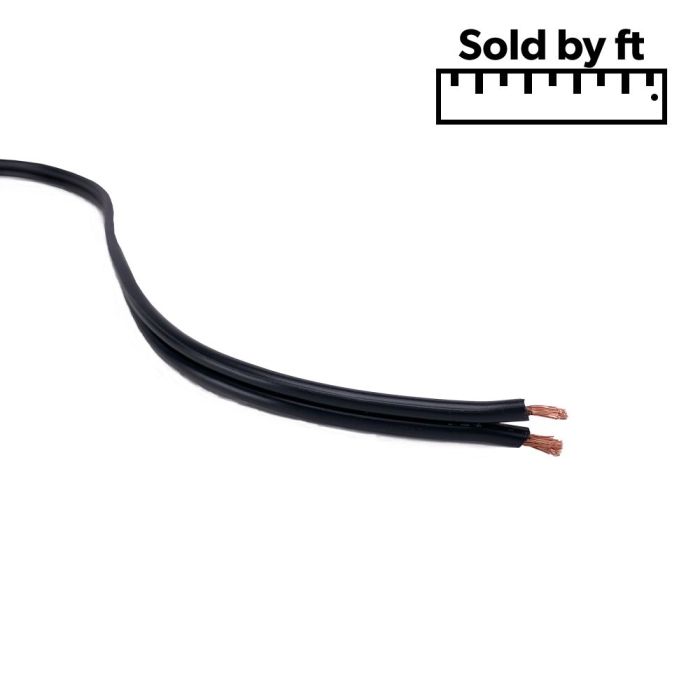

12 AWG Underground Lighting Wire By The Foot

  • Series: 12 Gauge
  • Wire Type: Landscape Lighting 2 Conductors
  • Legnth (ft.): By The Foot
  • Color: Black

NOTE: This product (12-2-LIGHTING-WIRE-FT) is sold by the foot. Items sold by the foot are nonreturnable. When ordering, please enter the amount of feet that you want to order in the quantity field.

12 AWG Underground Lighting Wire By The Foot

Features & Benefits

  • 12 AWG 2/C Stranded Underground Low Energy Circuit lighting Cable.
  • Sold by the foot
  • This cable consists of two bare copper conductors with integral insulation and jacket in an SPT style construction.

Product Details


Low Voltage Underground lighting Applications


UL Misc. Wire - Low Energy Circuit Cable

Construction Parameters:

  • Conductor: 12 AWG Bare Copper
  • Stranding: 104/30
  • Insulation/Jacket Material: PVC
  • Insulation/Jacket Thickness: 0.047" Nom.
  • Overall Dimensions: 0.186" x 0.417" Nom.

Electrical Properties:

  • Temperature Rating: -20 degrees C to 60 degrees C
  • Operating Voltage: 150 V Max.
  • DC Resistance per Conductor @ 20 degrees C: 1.59 Ohms/1M' Nom.

When ordering wire by the foot, does the wire come in one continuous wire?

Yes, wire by the foot comes in a continuous run up to 250ft. Orders over 250ft will be shipped in spools of 250 ft plus any extra to complete the order.

For Example

Related Articles & Videos



More Information
Brand Wiring
Type Wire
Gauge 12
Voltage 150V
Outer Coating PVC Insulated
Wire Type Landscape Lighting
Warranty 1 Year
Color Black
Conductors 2
Length By The Foot
