Blazing Waterproof Small Wire Connector | LV9000

• Protects low-voltage connections from moisture and corrosion
• WIRE SIZES:Minimum 2 #24 gauge wires; Maximum 5 #18; Maximum 30 Volts / 10 Amps
• Copper and/or aluminum wire; solid or stranded
• Sold individually or in bag quantities of 24pcs
• Silicone Sealant: -45F to 400F

Features & Benefits

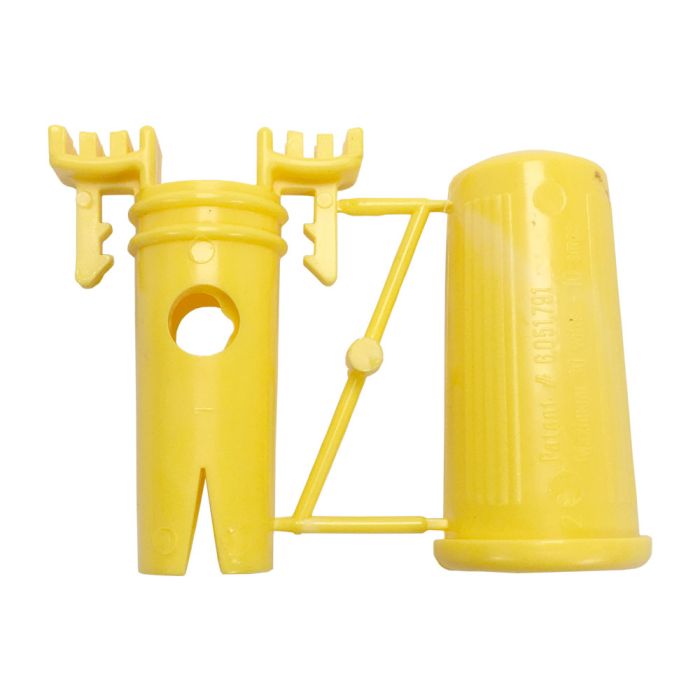

Both waterproof and corrosion proof, this pre-filled with petroleum grease wire connector is great for use with low voltage landscape lighting and or sprinkler systems. The wire nut comes with a yellow nut for wire splicing.

• Waterproof and corrosion proof
• Pre-filled with petroleum grease that never hardens
• Easy latch lid provides strain relief; includes yellow nut for wire splicing
• Yellow nut is UL Listed and flame retardant
• Manufacturer approved for direct bury
• For use in irrigation systems and low voltage lighting applications

Product Details

• Max. Voltage: 30V, 10AMPS
• Connector Size: 2" x 1.125"
• Wire Type: Copper/Copper
• Wire Range: Min #24/Max #18
• Temperature Rating: 90C (194F)
• Silicone Sealant Temperature: -40F to 400F

Installation Instructions

IMPORTANT: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes.

1. Strip wires 3/4" and group bare wire ends together. Do not pre-twist solid wire. You must pre-twist stranded wire. If using both wire types, you must wrap stranded wire around untwisted solid wires.
2. Insert wires through flexible sealing fingers and bend bare wire ends together into either "V-Channel." With proper 3/4" strip length, wire tips just reach to edge of round hole below "V".
3. Separate connector, removing plastic "link" or "leg" from inner sleeve. Push inner sleeve into pre-filled outer sleeve until double-locked. Prefilled silicone fully waterproofs the connection. Do not reuse.

Measurements

• A - 1.822"
• B - 1.133"
• C - 0.810"
