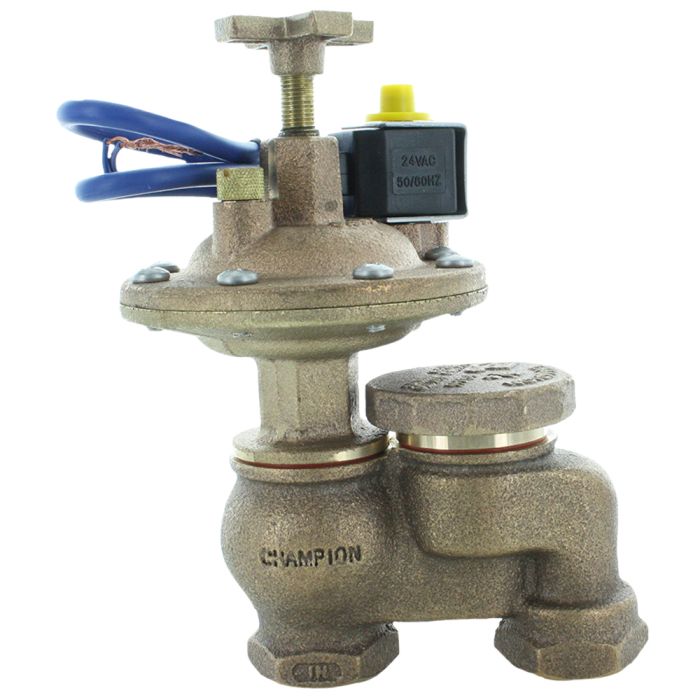

Champion Brass Anti-Siphon Valve 1 in. FPT | CL466P-100-C

• Size: 1 in.
• Connection: Female Pipe Thread
• Application: Residential and Commercial

Features & Benefits

• True red brass construction on CL's and 466 series.
• Combines reliable Champion anti-siphon valves and actuators.
• Flow control stem and external bleed
• Anti-siphon prevents backflow of contaminated water into household water supply.

Product Details

Operating Specifications

• Optimal flow range: 5-35 GPM
• Rated to 150 PSI maximum working pressure
• Optimal operating pressure 30-90 PSI

Electrical Characteristics

• Solenoid: 24VAC/60Hz/50Hz
• Inrush current:0.59 Amps (14.2 VA)
• Holding Current: 0.33 Amps (7.9 VA)
• 22" lead wires
