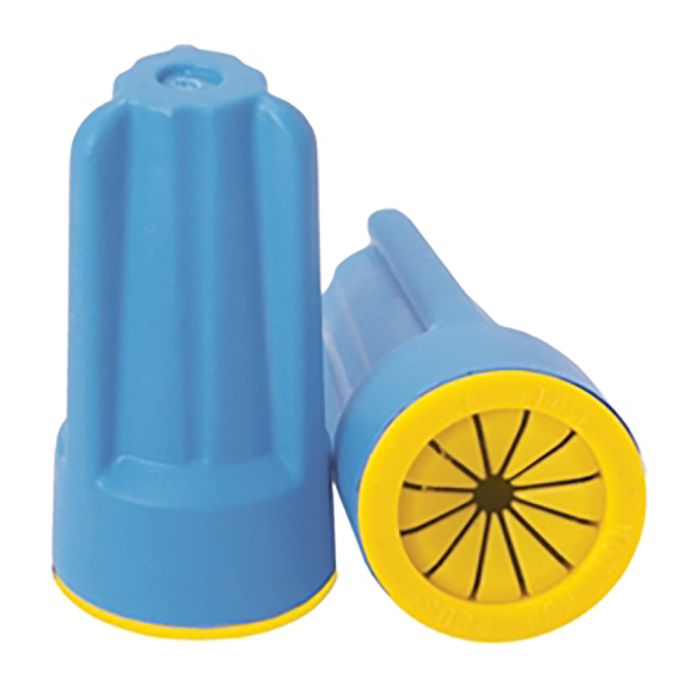

Blazing Twist Locking Waterproof Small Wire Connectors (200 ct.) | TLC-10-200

SKU
TLC-10-200
Sales Price $143.13 Our Price $219.95 You save 35%

Blazing Twist Locking Waterproof
Small Wire Connectors

Great for use in irrigation and or landscape lighting applications, this connector is already silicone-filled ready to use for low voltage applications.

Features Benefits

  • Silicone filled connector
  • For use in irrigation and landscape lighting applications
  • For low voltage applications (30V Max, 10 Amps)

Product Specifications & Measurements

  • Max. Voltage: 30V max. building wire, 10AMPS
  • Connector Size: 1" x .5"
  • Wire Type: Copper/Copper
  • Wire Range: Min #20/Max #14 (STR), #18 (SOL)
  • Temperature Rating: 90°C (194°F)
  • Silicone Sealant Temperature: -40°F to 400°F

Measurements

  • A - 0.981"
  • B - 0.491"
  • C - 0.362"

Installation Instructions

IMPORTANT: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes.

  1. Strip wires 1/2” (12.7mm) and align frayed strands and conductors. Pretwisting of wires unnecessary.
  2. Hold stripped wire ends evenly together. Lead stranded wire(s) beyond solid wire ends by approximately 1/16” (1.6mm).
  3. Firmly hold wire combination together and insert it through the center of the cap on the end of the connector.
  4. Continue to push and twist (clockwise) until hand tight 1 to 2 wire wraps should be visible. Do not over torque.
  5. . Wipe any excess silicone in and around the wires. Do not reuse.
More Information
Brand King Innovation
Warranty 1 Year
Size Small
Cutsheet (326.87 kB)
