Blazing Twist Locking Waterproof Medium Wire Connectors (100 ct.) | TLC-20-100

SKU
TLC-20-100
Sales Price $93.37 Our Price $145.95 You save 36%

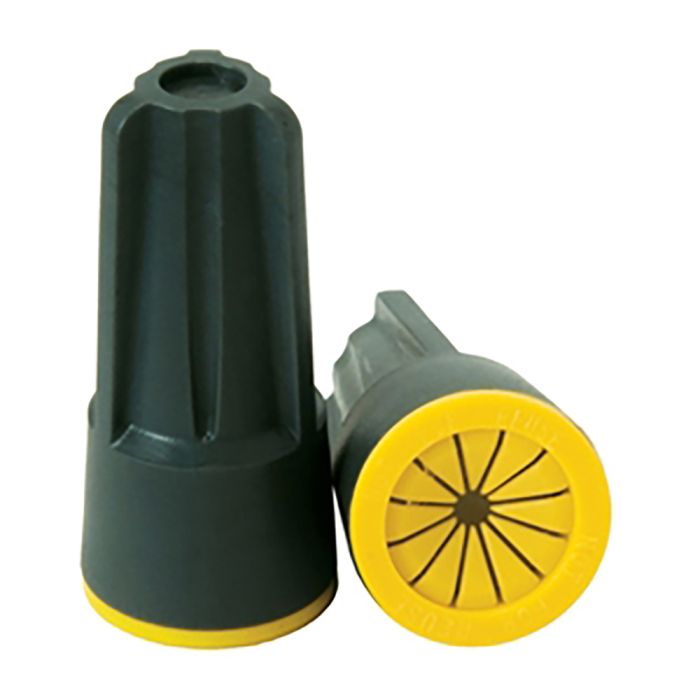

Blazing Twist Locking Waterproof
Medium Wire Connectors

This silicone-filled connector is an excellent connector use in irrigation and landscape light applications. Optimal use in low voltage applications.

Features Benefits

  • Silicone filled connector
  • For use in irrigation and landscape lighting applications
  • For low voltage applications (30V Max, 10 Amps)

Product Specifications & Measurements

  • Max. Voltage: 30V max. building wire, 10AMPS
  • Connector Size: 1.5" x .675"
  • Wire Type: Copper/Copper
  • Wire Range: Min #18/Max #12
  • Temperature Rating: 90°C (194°F)
  • Silicone Sealant Temperature: -40°F to 400°F

Measurements

  • A - 1.44"
  • B - 0.675"
  • C - 0.487"

Installation Instructions

IMPORTANT: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes.

  1. Strip wires 1/2" (12.7mm) and align frayed strands and conductors. Pretwisting of wires unnecessary.
  2. Hold stripped wire ends evenly together. Lead stranded wire(s) beyond solid wire ends by approximately 1/16" (1.6mm).
  3. Firmly hold wire combination together and insert it through the center of the cap on the end of the connector.
  4. Continue to push and twist (clockwise) until hand tight 1 to 2 wire wraps should be visible. Do not over torque.
More Information
Brand King Innovation
Warranty 1 Year
Size Medium
Cutsheet (330.64 kB)
