Features & Benefits

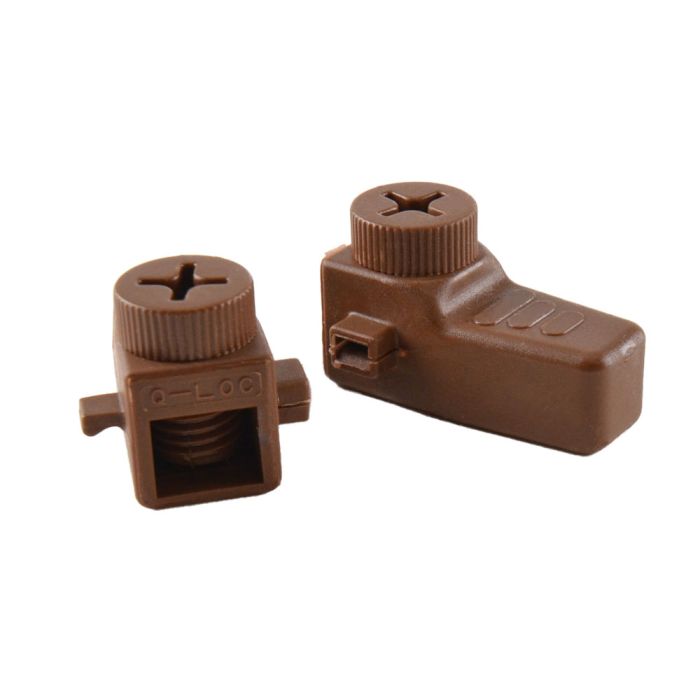

NewLite's Q-Loc Lighting Connector was designed specifically to make your lighting jobs cleaner and easier to install. It's innovative locking bolt creates a quick connection, and allows for safe movement of the fixtures during final placement. Keeping in mind that every connection needs two connectors, Q-Loc designed their connectors to snao together allowing for a cleaning looking installation. The earth toned color and the grouping of the connectors allows the Q-Loc™ to be easily hidden in the landscape.
|

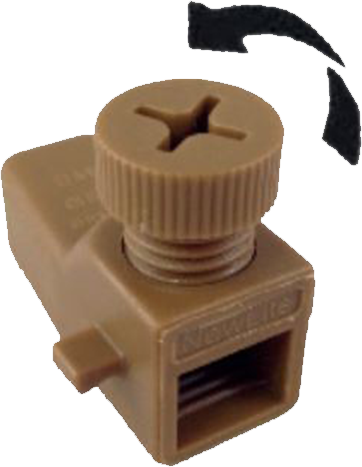

STEP ONE Open Top Locking Bolt |
STEP TWO Insert Striped Wires |
 |
 |
|
Turn the top locking bolt counter clockwise until there is a clear pathway through the front opening of the connector. No need to fully remove. |
Strip wires 3/4" - 1", Fan and Pre-Twist ends then insert intoi the connector as far as the wire will travel. |
|

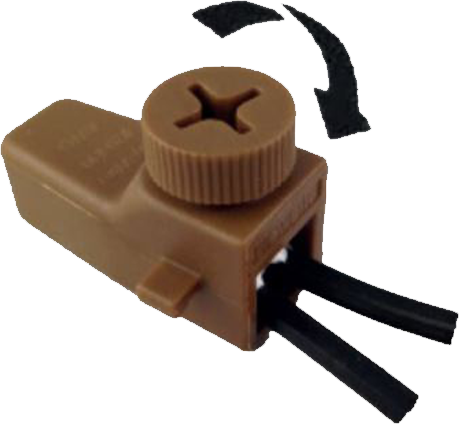

STEP THREE Hand Tighten Locking Bolt |

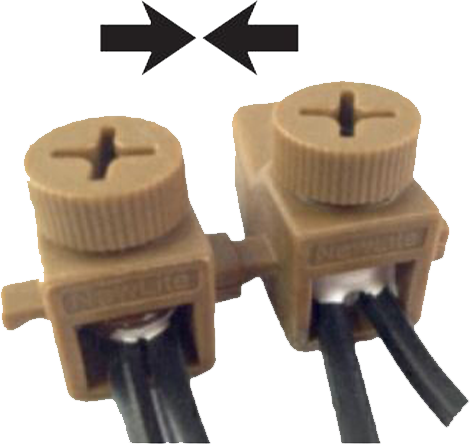

STEP FOUR For A Clean Installation |
 |
|
|
No need to over tighten. The locking bolt will press against the wire jacket and not the bare cipper ends; giving it a better hold and secure connection |
Press the male end of one connector into the female end of another connector. This will group your connectors together, and give a clean looking installation. |
| Brand | NewLite |
|---|---|
| Product Type | Lighting Accessories |
| Size | Medium |
