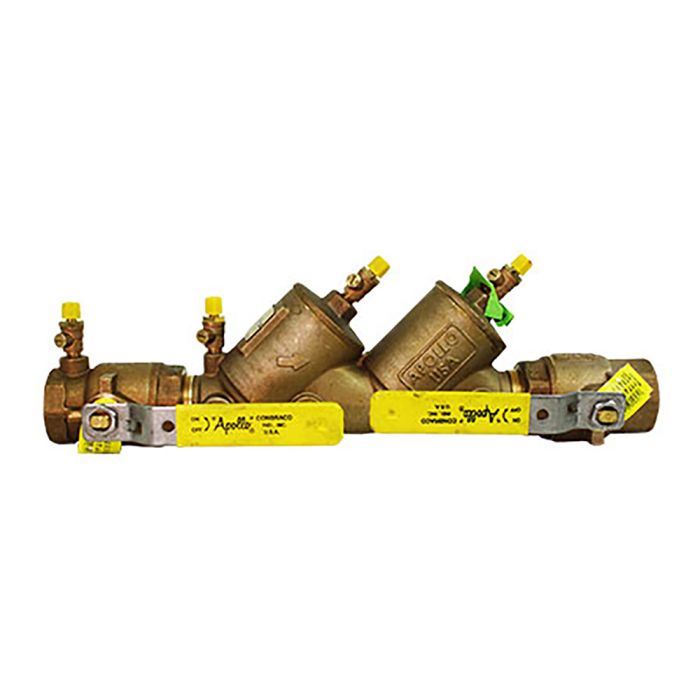

Conbraco 4A-100 DCA Backflow Preventer 1-1/2 in. FPT | CDC4A-107-A2F

SKU
CDC4A-107-A2F
Sales Price $584.91 Our Price $785.95 You save 26%

Conbraco CDC4A-107-A2F 1 1/2 inch 4A Series Double Check

The Apollo Model DC4A Double Check Valves prevent contamination of the potable water supply due to back-siphonage or backpressure from substances that are objectionable to the potable water supply, but non-health hazards. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This Made in America assembly features Apollo ball valves with stainless steel handles and nuts as standard and carries the five-year Apollo factory warranty.

Features / Benefits

  • Low pressure loss documented by independent approval agencies
  • Easily removable modular check valve cartridge
  • Captured stainless steel springs
  • Apollo ball valves w/ SS handles & nuts standard
  • Top-mounted test cocks for easy testing
  • No special tools required
  • Chloramine-resistant elastomers
  • Conbraco Industries, Inc. continues to operate as Apollo Valves
  • Designed, cast, machined, assembled and tested IN THE USA

Approvals

ASSE 1015 - Horizontal and Vertical Flow Up ("-2") CSA B.64.5 - Horizontal and Vertical Flow Up ("-2")

Performance Rating

Maximum Working Pressure 175 psi Temperature Range 33 F 180 F

FLOW CURVES, Curves developed from independent approval agencies actual tests Consult factory for details. indicates rated flow as determined by approval agencies, 7.5 ft/sec is the typical maximum Plumbing system flow rate.

Material Specifications

Part Name: Material

  • Body, Caps, Ball Valve Shutoffs, Test cocks: Bronze C84400
  • Check Valve Cartridges: Glass-Filled PPO
  • Springs: 300 Series Stainless Steel
  • Seat Discs: Chloramine-resistant Silicone
  • O-rings: Chloramine-resistant EPDM

Manual & Literature

Specification Manual

More Information
Brand Conbraco
Product Type Double Check Assemblies (DCA)
Test Cocks 4 MALE
Max Working Pressure 175 PSI
Hydrostatic Test Pressure 350 PSI
Temperature Range 33F to 180F
Main Valve Body Materials Bronze
Elastomers Silicone
Springs Stainless Steel
Warranty 5 Years
Size 1-1/2 in.
Connection FPT
Lead Free Not Lead Free
Specifications (193.49 kB)
