Conbraco 4A-100 DCA Backflow Preventer 2 in. FPT | CDC4A-108-A2F

In stock
SKU
CDC4A-108-A2F
Free Shipping on Orders over $149
Sales Price $408.95 Our Price $681.45 You save 40%

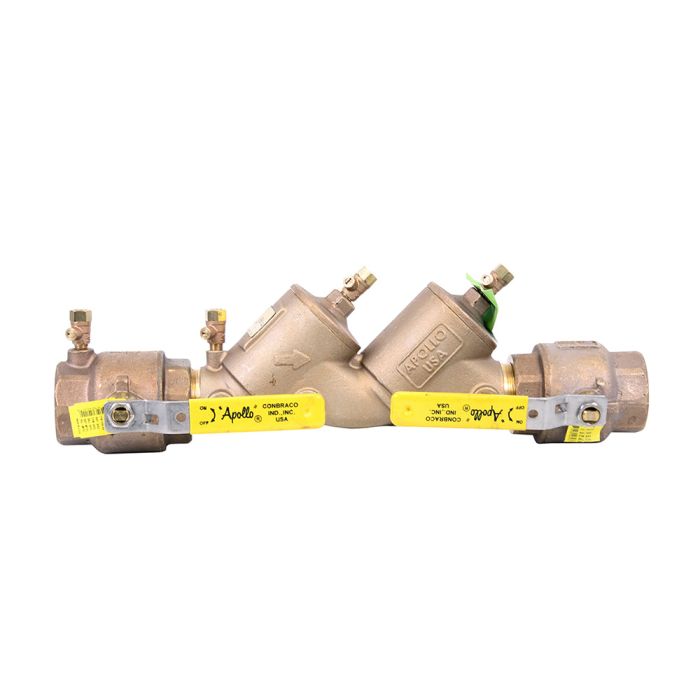

Conbraco 4A-108-A2F 2 in. DCA Backflow Preventer

The Apollo Model DC4A Double Check Valves prevent contamination of the potable water supply due to back-siphonage or backpressure from substances that are objectionable to the potable water supply, but non-health hazards. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This Made in America assembly features Apollo ball valves with stainless steel handles and nuts as standard and carries the five-year Apollo factory warranty.

Features / Benefits
  • Low pressure loss documented by independent approval agencies
  • Easily removable modular check valve cartridge
  • Captured stainless steel springs
  • Apollo ball valves w/ SS handles & nuts standard
  • Top-mounted test cocks for easy testing
  • No special tools required
  • Chloramine-resistant elastomers
  • Designed, cast, machined, assembled and tested IN THE USA
Approvals:

ASSE 1015 - Horizontal and Vertical Flow Up (2") CSA B.64.5 - Horizontal and Vertical Flow Up (2")

Performance Rating:

Maximum Working Pressure 175 psi Temperature Range 33F - 180F

FLOW CURVES, Curves developed from independent approval agencies actual tests. Consult factory for details. Indicates rated flow as determined by approval agencies, 7.5 ft/sec is the typical maximum Plumbing system flow rate. Material Specifications Part Name: Material
  • Body, Caps, Ball Valve Shutoffs, Test cocks: Bronze C84400
  • Check Valve Cartridges: Glass-Filled PPO
  • Springs: 300 Series Stainless Steel
  • Seat Discs: Chloramine-resistant Silicone
  • O-rings: Chloramine-resistant EPDM
Manual & Literature Specification Manual
Brand:
Conbraco
Test Cocks:
4 MALE
Max Working Pressure:
175 PSI
Hydrostatic Test Pressure:
350 PSI
Temperature Range:
33F to 180F
Main Valve Body Materials:
Bronze
Elastomers:
Silicone
Springs:
Stainless Steel
Warranty:
5 Years
Size:
2 in.
Connection:
FPT
Lead Free:
Not Lead Free
Specifications (193.49 kB)
