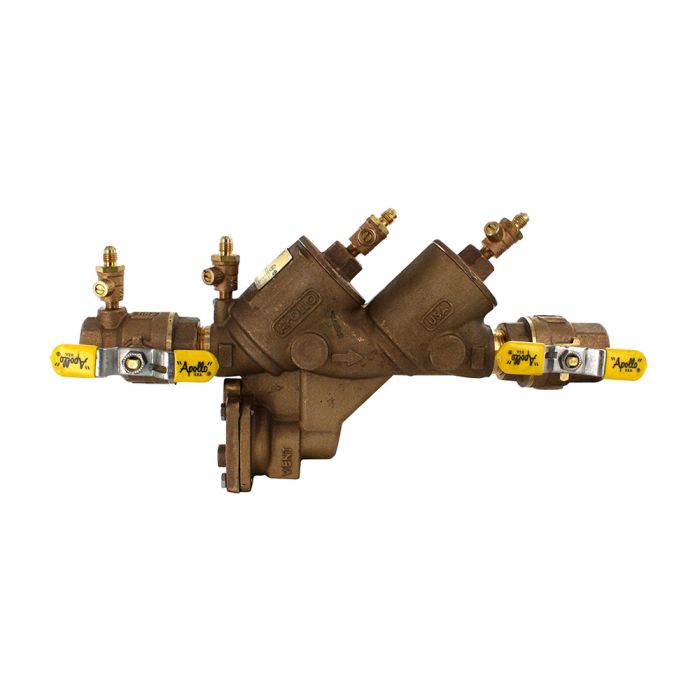

Conbraco 4A-200 RPZ Backflow Preventer 1 in. FPT | CDC4A-205-A2F

The Apollo Model RP4A series Reduced Pressure Backflow Preventers provide maximum protection of the potable water supply due to back-siphonage or backpressure from substances that are hazardous to the potable water supply. The top accessed modular check valve cartridges provide captured springs, replaceable seats, and reversible silicone seat discs. This Made in America assembly features Apollo ball valves with stainless steel handles and nuts as standard and carry the five-year Apollo factory warranty.

Features

• Low pressure loss documented by independent approval agencies
• Easily removable modular check valve cartridge
• Captured stainless steel springs
• Apollo? ball valves w/ SS handles & nuts standard
• Top-mounted test cocks for easy testing
• No special tools required
• Modular Relief Valve
• Chloramine-resistant elastomers
• Conbraco Industries, Inc. continues to operate as Apollo Valves
• Designed, cast, machined, assembled and tested IN THE USA

Approvals:

ASSE 1013 - Horizontal (?"-2"), U & Z (?"-1") CSA B.64.4 - Horizontal (?"-2")

Performance Rating:

Maximum Working Pressure 175 psi Temperature Range 33° F - 180° F

FLOW CURVES, Curves developed from independent approval agencies actual tests Consult factory for details indicates rated flow as determined by approval agencies, 7.5 ft/sec is the typical maximum Plumbing system flow rate.
