DIG 1/4 in. Black Drip Line - (6 in. Emitter Spacing) (.52 GPH) (100 ft.) | ML-106

In stock
Free Shipping on Orders over $149
Sales Price $13.55 Our Price $19.95 You save 32%

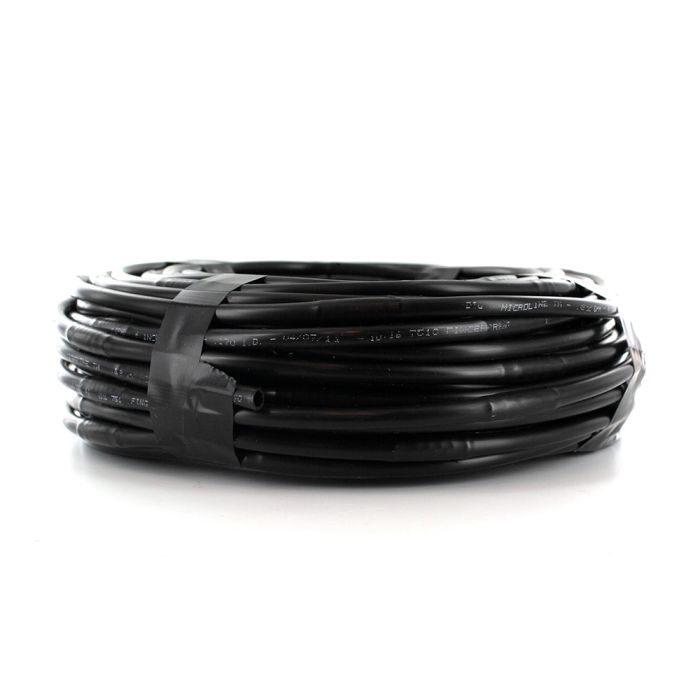

DIG 1/4 in. Black Drip Line

  • Emitter Spacing: 6 in.
  • Flow Rate: 0.52 GPH
  • Length: 100 ft

Features & Benefits

DIG 1/4” Microline™ Dripline is a versatile and flexible, UV-protected small-diameter dripline that is suitable for a wide range of irrigation applications, both commercial and residential. The dripline may be installed above ground and covered with mulch or bark to conserve water or for aesthetic reasons. Each of the .52 GPH drip emitters in the dripline is built with a large filter along its cross-section to ensure that moving particles on the bottom of the dripline do not enter the labyrinth water path, supporting the trouble-free operation. The dripline is available with emitters in 6″, 9″ or 12″ spacing.

Microline™ can be used in loops around individual plants or trees, planter boxes, vegetable gardens, window boxes, box gardens, narrow paths of planting areas, or where total saturation is desired along the drip line path while eliminating water staining of fences, windows, and walls. It may be extended from the drip tubing or micro tubing using a 1/4″ barb or attached to our 4- or 6-outlet drip manifolds.

  • Used above ground or under mulch for a variety of applications such as containers and narrow plantings
  • Large labyrinth water passage and turbulent flow help reduce clogging
  • Inlet filter helps prevent particles from entering the drip emitter labyrinth path
  • Resistant to chemicals and fertilizers commonly used in landscape applications
  • Used with 1/4″ (6 mm) barbed fittings
  • Flexible tubing for easy installation
  • Two outlets per drip emitter ensure less chance of clogging

Product Details

  • Nominal flow rates: .52 GPH (2 L/H) at 15 PSI (1 BAR)
  • Dripper color code: blue
  • Operating pressure: 10-25 PSI (.7-1.7 BAR)
  • Dripline color code: black or brown
  • Materials: Dow FINGERPRINT™ DFDA-7510 NT linear low-density polyethylene resin
  • Size: 1/4" (6 mm) (.170" ID x .250" OD) (4.445 mm ID x 6.35 mm OD)
  • Spacing: 6", 9" or 12" (15 cm, 23 cm, or 30 cm)
  • Available in 100', 500', 1000' and 3000' coils (30 m, 152 m, 305 m, 914 m)
  • Minimum bending radius: 1' (.3 m)
  • Filter requirement: minimum of 150 mesh
More Information
Brand DIG
Inner Diameter .170 in.
Outer Diameter .250 in.
Type Drip Line
Purpose Or Function Dripline
Warranty 7 Years
Size 1/4 in.
Specifications (959.26 kB)
