DIG 1 GPH 12-Outlet Drip Manifold Kit | TOP-100

In stock
SKU
TOP-100
Free Shipping on Orders over $149
Sales Price $14.95 Our Price $21.81 You save 31%

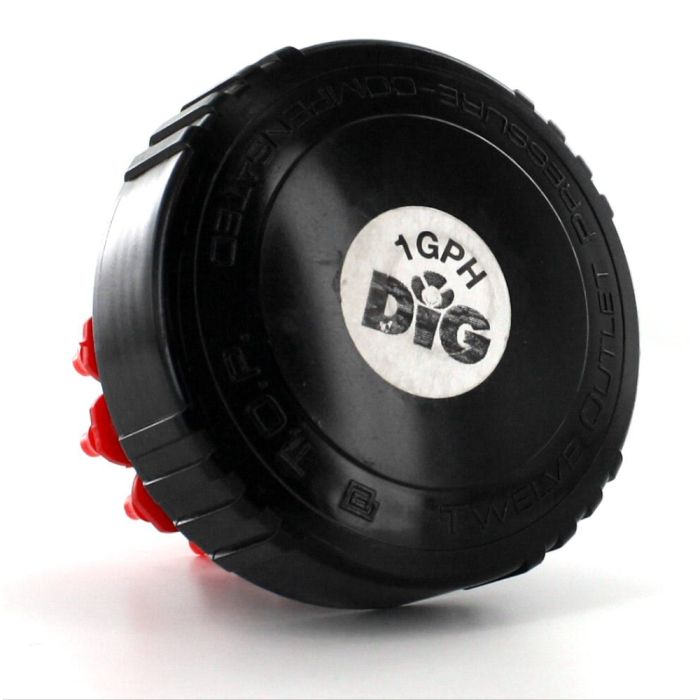

1 GPH 12-Outlet Drip Manifold Kit

  • Flow Rate: 1 GPH
  • Size: 1/2 in.
  • Type: Pressure Regulated Drip Manifold Kit

Features & Benefits

The TOP concept is designed for first-time installations or retrofitting an existing sprinkler riser into an efficient 12-Outlet drip irrigation system. The TOP concept utilizes unique self-cleaning, pressure compensating emitters enabling long runs with even water distribution from all outlets.

  • Constructed with 12 built-in individually pressure compensating drip emitters
  • Self-flushing emitters allow passage of water and minimize clogging
  • Interchangeable drip emitters for variable flow rates in a single head
  • Color-coded drip emitters and barbs easily identify flow rate at each zone
  • Drip emitters are individually filtered (approx. 80 mesh)
  • Backup mini disc filter
  • Rugged materials to withstand the most adverse conditions
  • Can be installed above grade or placed below grade in a 6" emitter box
  • Inlet plugs provide the option to cap off up to eight drip emitters
  • TOP kits contain 100 of 1/8" distribution tubing, accessories, stakes, and 1/4" converter barbs which allow the use of 1/4" distribution tubing

Product Details

  • Operating pressure: 15-50 PSI (1-3.4 BAR)
  • Pressure compensating range: 8-80 PSI (.5-5.6 BAR)
  • Flow rates: .6, 1, 2.2 and 3.3 GPH (2.3, 3.8, 8.3 and 12.5 L/H)
  • Inlet size: 1/2" FNPT
  • Used with 1/8" (.187" OD) or 1/4" (.150"-.160" ID) distribution tubing
  • Filter requirement: minimum of 120 mesh
  • Body and cover: high-impact plastic
  • Filter: nylon
  • Diaphragm: silicon
Brand:
DIG
Size:
1/2 in.
Flow Rate:
1 GPH
Type:
Pressure Compensating Emitters
Manual (525.08 kB)
Specifications (188.68 kB)
