DIG 1 GPH 12-Outlet Manifold | TOP-010

SKU
TOP-010

*XX-Large are an additional $1.00

Sales Price $10.71 Our Price $14.95 You save 28%

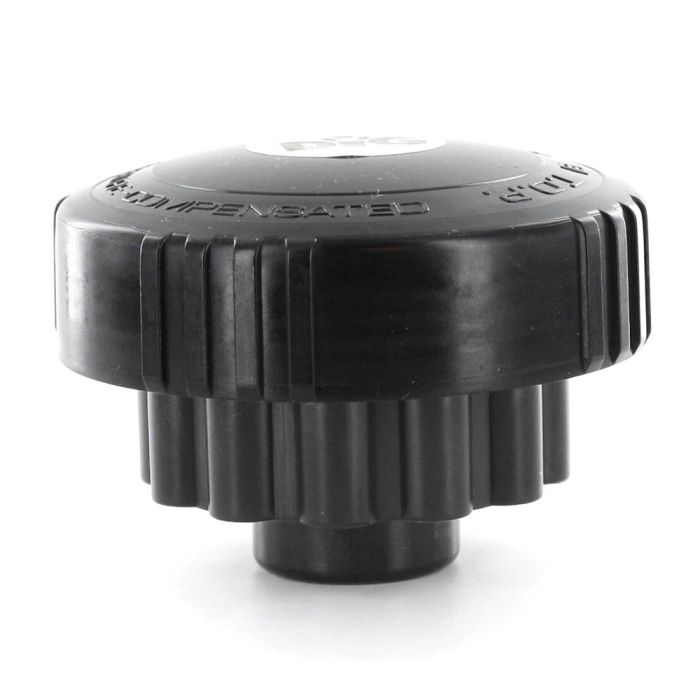

DIG 1 GPH 12-Outlet Manifold

  • Flow Rate: 1 GPH
  • Type: Pressure Compensating Emitters

Features & Benefits

TOP 12-Outlet Drip Emitter. 1 GPH per outlet. The TOP concept is designed for first time installations or retrofitting an existing sprinkler riser into an efficient 12-Outlet drip irrigation system.

The TOP concept utilizes unique self cleaning, pressure compensating emitters enabling long runs with even water distribution from all outlets. Color-coded converter barbs, end plugs, caps, stakes and micro tubing sold separately. OR you can purchase TOP-100 or TOP-300 kits that include the accessories previously listed.

  • Constructed with 12 built-in individually pressure compensating drip emitters
  • Self-flushing emitters allow passage of water and minimize clogging
  • Interchangeable drip emitters for variable flow rates in a single head
  • Color-coded drip emitters and barbs easily identify flow rate at each zone
  • Drip emitters are individually filtered (approx. 80 mesh)
  • Backup mini disc filter
  • Rugged materials to withstand the most adverse conditions
  • Can be installed above grade or placed below grade in a 6″ emitter box
  • Inlet plugs provide the option to cap off up to eight drip emitters
  •  TOP kits contains 100′ of 1/8″ distribution tubing, accessories, stakes and 1/4″ converter barbs which allow the use of 1/4″ distribution tubing

Product Details

  • Operating pressure: 15-50 PSI (1-3.4 BAR)
  • Pressure compensating range: 8-80 PSI (.5-5.6 BAR)
  • Flow rates: .6, 1, 2.2 and 3.3 GPH (2.3, 3.8, 8.3 and 12.5 L/H)
  • Inlet size: 1/2″ FNPT
  • Used with 1/8″ (.187″ OD) or 1/4″ (.150″-.160″ ID) distribution tubing
  • Filter requirement: minimum of 120 mesh

Materials:

  • Body and cover: high-impact plastic
  • Filter: nylon
  • Diaphragm: silicon

Dimensions:

  • 3″ W x 2″ H (8 cm W x 5 cm H)

Performance Maximum number of TOP on single length of PVC lateral

Color Black Red Green Purple
Flow in GPH .6 GPH 1 GPH 2.2 GPH 3.3 GPH
Number of Manifolds Total flow rate in GPM Total flow rate in GPM Total flow rate in GPM Total flow rate in GPM
1 0.12 0.2 0.44 0.66
5 0.6 1 2.2 3.3
10 1.2 2 4.4 6.6
15 1.8 3 6.6 9.9
20 2.4 4 8.8 13.2
25 3.0 5 11.0 16.5
30 3.6 6 13.2 19.8
35 4.2 7 15.4 23.1
40 4.8 8 17.6 26.4
45 5.4 9 19.8 19.7
50 6.0 10 22.0 33.0
More Information
Brand DIG
Product Type 12-Outlet Drip Manifolds
Warranty 3 Years
Flow Rate 1 GPH
File Icon Specifications (188.68 kB)
