DIG Digital Hose End Timer | B09D

Free Shipping on Orders over $149
Sales Price $30.27 Our Price $64.95 You save 53%

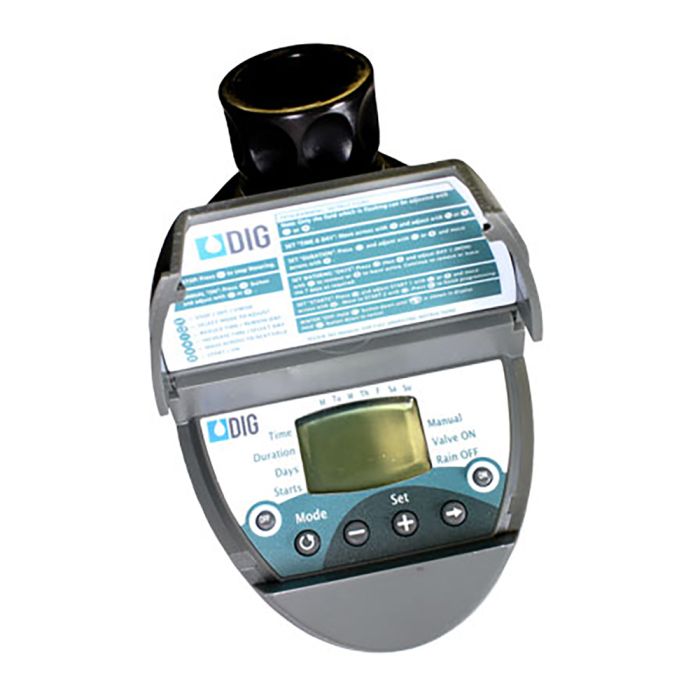

B09D Digital Hose End Timer

  • DIG Digital Hose End Timer
  • 1 Zone
  • Max Station Run Time: 12 Hours

Features & Benefits

The B09D 3/4" in. Digital Hose End Timer, one in DIG's newest range of hose end timers, offers simplified programming and improved monitoring of battery power with less current, resulting in longer battery life with reliable operation. With higher flow rates at lower inlet pressures and a range of programming features, the B09B delivers a reliable and cost-effective solution for residential use. The timer has four start times per day with durations from 1 minute to 12 hours 59 minutes in an operating flow range of .5 to 6.3 gallons per minute, allowing use in a wide range of applications including drip irrigation or micro-sprinkler systems connected to a garden hose or faucet/spigot. It uses one 9-volt alkaline battery that can last for over a year.

  • 3/4" in. FHT inlet and MHT outlet
  • Easy programming using six buttons and large LCD display
  • AM / PM clock
  • Watering duration from 1 minute to 12 hours 59 minutes in 1 minute intervals
  • Seven day watering calendar
  • Four start times per day

Product Details

  • Preset program of five minutes watering every day
  • Electronic battery monitoring that provides constant reading of battery strength
  • Five part battery strength indication: 4, 3, 2, 1 bar and then flashing one bar on close down
  • Low battery auto lock out to ensure that the timer valve will not open unless it can close
  • Low energy use (less than 20 micro amps in standby mode) ensures long battery life
  • Easy manual operations using Start and Stop buttons
  • Rain mode easily accessed by holding the OFF key for three seconds
  • High water flow at normal water pressures
  • Operates on low water flow of less than 0.5 GPM
  • High strength female hose thread connection with easy removal via spring clip
  • 3/4" in. FHT inlet with screen and MHT outlet
  • Powered by one 9-volt alkaline battery with a battery life up to one year
  • Weather resistant
  • Three year limited warranty
  • Operating pressure 10 PSI to 80 PSI (0.6 5.5 Bar)
  • Flow rate up to 6.3 GPM at 30 PSI (24 L/PM at 2 Bar)
  • Temperature range: 40° F to 125° F (3° C to 50° C)
  • Power source: 9-volt alkaline battery (not included)
  • Solenoid: durable electric motor
  • Power consumption: 20 micro amps in standby mode
  • Materials: body ABS, and inner parts of high-impact plastic
  • Dimensions: 6" in. D X 4" in. W x 6.5" in. H ( 15.2 cm X 10.0 cm X 16.2 cm)

Programming Features

  • Watering duration from 1 minute up to 12 hours and 59 minutes
  • Duration can be set in one minute increments
  • Watering frequency: can be programmed in a seven-day watering calendar
  • In weekly schedule the controller can be programmed to operate on any days of the week such as Monday, Wednesday, and Friday.

Related Articles & Videos



More Information
Brand DIG
Expandability Fixed
Power Source DC Powered
Type Hose End Timer
Start Times Per Program 4
Max Station Run Time (HRS) 12
Application Residential
Hose Timer Type Digital
Warranty 3 Years
Zones 1
Enclosure Type Waterproof
Manual (2.03 MB)
