Febco 825Y RPZ Backflow Preventer 2 in. FPT | FE825Y-200

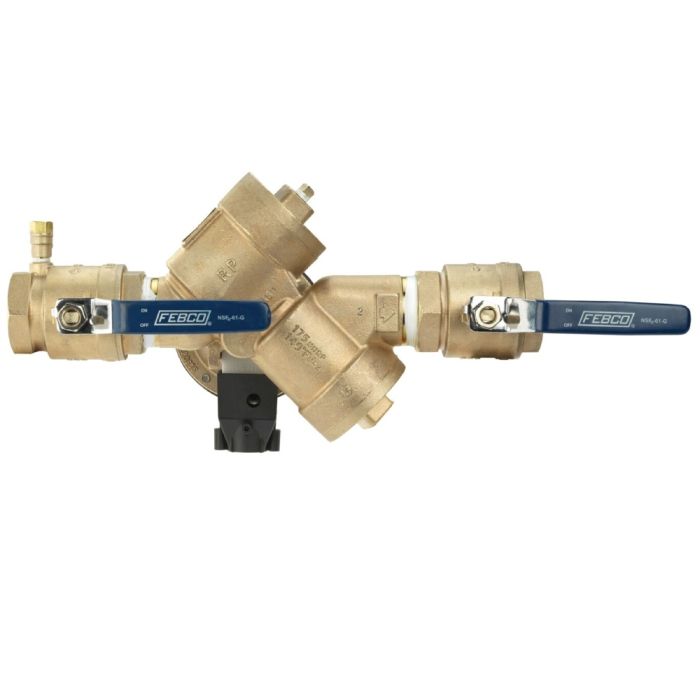

FEBCO FE825Y-200 2 in. "Y" Pattern RPZ Backflow Preventer:

Series 825Y "Y" Pattern Design Reduced Pressure Zone Assemblies are used to protect against high hazard (toxic) fluids in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. They are also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. They feature a bronze body and threaded ball valve shutoffs. Maximum Working Pressure: 175psi (12.1 bar).

• Maximum Working Pressure: 175psi (12.1 bar)
• Hydrostatic Test Press: 350psi (24.1 bar)
• Temperature Range: 32?F to 140?F (0?C to 60?C)

• Valve Body: Cast Copper Silicon Alloy
• Elastomers: Nitrile Seat Discs
• Diaphragms: Nitrile, fabric reinforced
• Springs: Stainless Steel

• AWWA C511 Conformance
• Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.

• Ultimate mechanical protection of portable water, against hazards of cross connection contamination.
• Meets all specifications of AWWA, ASSE, CSA and approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
• Modular relief valve for ease of maintenance.
• Simple Service procedures. All internal parts serviceable in line.
• Low Head Loss.
• Spring loaded "Y" type check valves.
• Internal relief valve pressure sensing passages.
• Replaceable seat rings on all sizes.
• End connection - NPT ANSI / ASME B1.20.1
