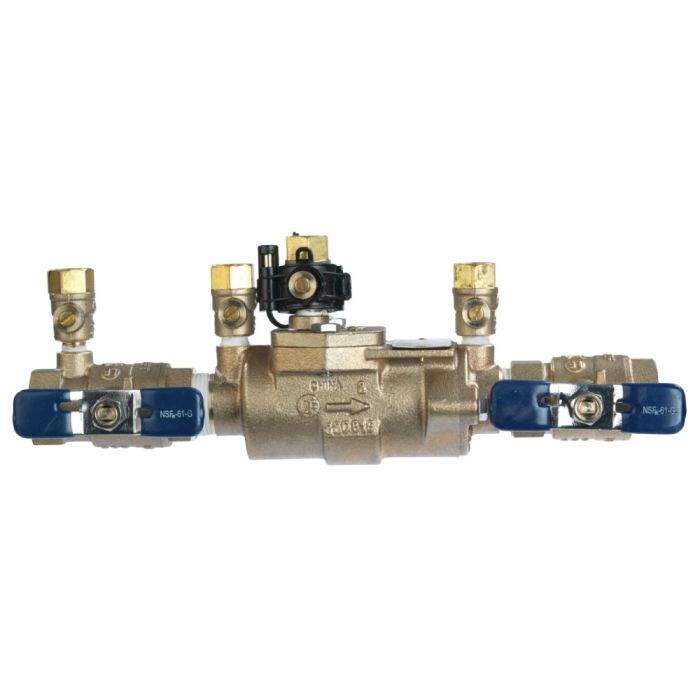

Febco FE850 DCA Backflow Preventer 3/4 in. | FE850-075

In stock
SKU
FE850-075
Free Shipping on Orders over $149
Sales Price $133.95 Our Price $248.85 You save 46%

Febco FE850 DCA Backflow Preventer 3/4 in.

  • Size: 3/4 in.
  • Test Cocks: 4 FEMALE
  • Max Working Pressure: 175 PSI

Features & Benefits

Febco MasterSeries 850 In-Line Design Double Check Valve Assemblies are designed to prevent the backflow of pollutants that are objectionable but not toxic, from entering into the potable water supply. They feature a bronze body and threaded ball valve end connections. Maximum Working Pressure: 175psi.

  • All non-health hazard (nontoxic) connections including: irrigation systems; fire sprinkler systems; in-plant commercial and industrial plumbing.
  • Double check assemblies are not approved for backflow prevention of any toxic substance (liquid; solid; or gas).
  • A double check assembly consists of two spring loaded check valves; shut off valves on the inlet and discharge side of the check valves and small test cocks. Check valves allow water to flow in one direction only.
  • A 12 inch minimum clearance is recommended under the assembly.

Product Details

  • Maximum Working Pressure: 175 PSI (1200 KPa)
  • Hydrostatic Test Pressure: 350 PSI (2400 KPa)
  • Temperature Range: 32F to 140F (0C to 60C)
  • End Connections: Threaded ANSI B2.1

Materials

  • Valve Body: Bronze
  • Elastomers: Silicone
  • Springs: Stainless Steel

Pressure - Temperature

  • Maximum Working Pressure: 175psi (12.1 bar)
  • Hydrostatic Test Press: 350psi (24.1 bar)
  • Temperature Range: 32�F to 140�F (0�C to 60�C)

Models

  • Wye - Strainer

Approvals - Standards

  • ANSI/AWWA Conformance (C510-92)
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
More Information
Brand Febco
Test Cocks 4 FEMALE
Max Working Pressure 175 PSI
Hydrostatic Test Pressure 350 PSI
Temperature Range 32F to 140F
Main Valve Body Materials Bronze
Elastomers Silicone
Springs Stainless Steel
Warranty 1 Year
Size 3/4 in.
Connection Union End Ball Valves
Lead Free Not Lead Free
Manual (767.18 kB)
