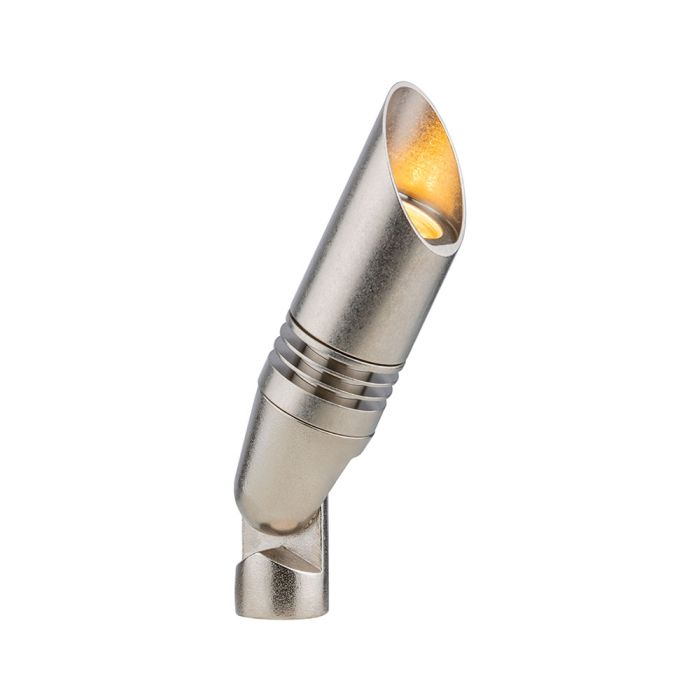

FX Luminaire CC Up Light

Overview

Created for small scale elements, the CC combines smart style and functional ability. Our Driver-On Board technology uses long-life LEDs which provide excellent illumination. The CC fuses high-design with precision engineering, making it an ideal selection.

Features & Benefits

• Brass construction

• Cree® Integrated LEDs

• Natural brass or antique finishes

• ProAim adjustability

• Color temperature filters

• Compatible with Luxor technology

• Phase and PWM dimmable

• Input voltage: 10-15V

Product Details

• Total Lumens
  • 1LED: 62
  • 3LED: 124
  • 3LEDT: 115
  • ZDC: 109
• Input Voltage
  • 1LED: 10 to 15V
  • 3LED: 10 to 15V
  • 3LEDT: 10 to 15V
  • ZDC: 11 to 15V
• Input Power (W)
  • 1LED: 2.0
  • 3LED: 4.2
  • 3LEDT: 4.2
  • ZDC: 6.0
• VA
  • 1LED: 2.4
  • 3LED: 4.5
  • 3LEDT: 4.5
  • ZDC: 7.2
• Efficacy (Lumens/Watt)
  • 1LED: 25
  • 3LED: 28
  • 3LEDT: 33
  • ZDC: 34
• Color Rendering Index (CRI)
  • 1LED: 80
  • 3LED: 80
  • 3LEDT: --
  • ZDC: 81
• Center Beam Candlepower
  • Spot (17-20)
    • 1LED: 217
    • 3LED: 493
    • 3LEDT: 496
    • ZDC: 142

Specifications Cont'd:

•  Dimming
  • 1LED: PWM, Phase**
  • 3LED: PWM, Phase**
  • 3LEDT: PWM, Phase**
  • ZDC: PWM, Phase**
• RGBW Available
  • 1LED: No
  • 3LED: No
  • 3LEDT:No
  • ZDC: Yes
• Luxor Compatibility
  • Default
    • 1LED: Zoning
    • 3LED: Zoning
    • 3LEDT:  --
    • ZDC:  --
  • ZD Option
    • 1LED: Zoning/Dimming
    • 3LED: Zoning/Dimming
    • 3LEDT: Zoning/Dimming
    • ZDC: --
• Minimum Rated Life (L70)
  • 1LED: 50,000 Hrs
  • 3LED: 50,000 Hrs
  • 3LEDT: 50,000 Hrs
  • ZDC: 50,000 Hrs
