FX Luminaire KG Specialty Light

Overview

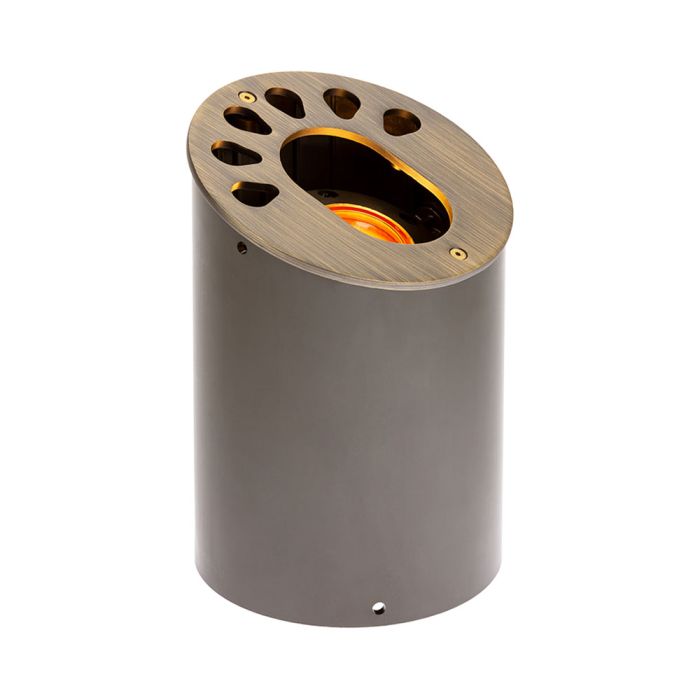

The KG is a metal topped subterranean LED fixture that offers a flat top in a variety of color options. Inside is an LED module that allows for aiming, perfecting the look on any feature or structure through time and growth.

Features & Benefits

• Die-cast aluminum or brass construction
• Two-layer marine-grade anodization and powder coat finish
• Cree® Integrated LEDs
• ProAim adjustability
• Color temperature filters
• Phase and PWM dimmable
• Input voltage: 10-15V

Product Details

• Total Lumens
  • 3LED: 128
  • 6LED: 165
  • 9LED: 321
  • ZDC: 123
• Input Voltage
  • 3LED: 10 to 15v
  • 6LED: 10 to 15v
  • 9LED: 10 to 15v
  • ZDC: 11 to 15v
• Input Power (W)
  • 3LED: 4.2
  • 6LED: 8.2
  • 9LED: 10.0
  • ZDC: 9.1
• VA
  • 3LED: 4.5
  • 6LED: 9.17
  • 9LED: 10.7
  • ZDC: 11.0
• Efficacy (Lumens/Watt)
  • 3LED: 30
  • 6LED: 32
  • 9LEDT: 32
  • ZDC: 23
• Color Rendering Index (CRI)
  • 3LED: 80+
  • 6LED: 80+
  • 9LEDT: 80+
  • ZDC: 80+

Specifications Cont'd:

•  Dimming
  • 3LED: PWM, Phase**
  • 6LED: PWM, Phase**
  • 9LED: PWM, Phase**
  • ZDC: --
• RGBW Available
  • 3LED: No
  • 6LED: No
  • 9LED:No
  • ZDC: Yes
• Luxor Compatibility
  • Default
    • 3LED: Zoning
    • 36LED: Zoning
    • 9LED:  --
    • ZDC:  --
  • ZD Option
    • 3LED: Zoning/Dimming
    • 6LED: Zoning/Dimming
    • 9LEDT: Zoning/Dimming
    • ZDC: --
  • ZDC Option
    • 3LED: --
    • 6LED: --
    • 9LED: --
    • ZDC: Zoning/Dimming
• Minimum Rated Life (L70)
  • All 55,000 Hrs
