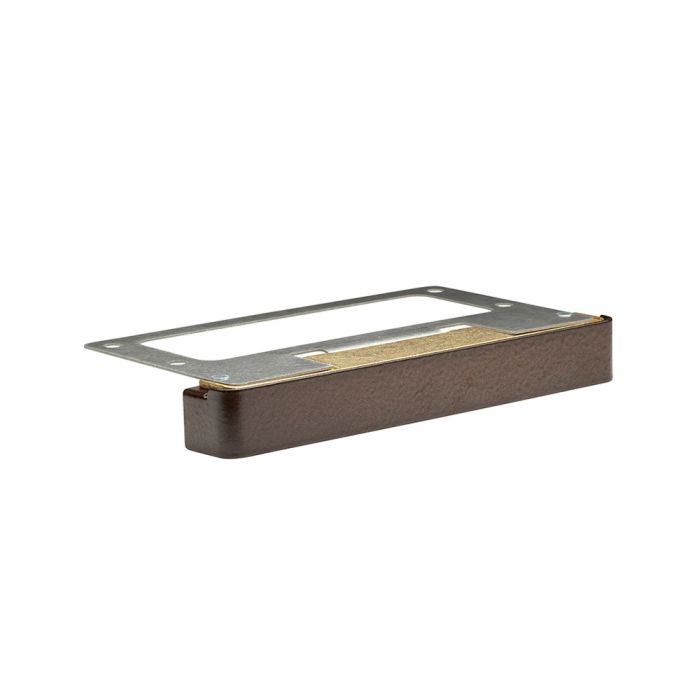

FX Luminaire LF Wall Light

The LF is our LED under-the-cap hardscape wall light. It can easily be fitted between a block wall and capstone for a neat, clean installation. Due to its modular bracket design, the LF can even be installed under railings and existing construction.

Features & Benefits

• Die-cast brass housing

• Natural, powder coated, or antiqued brass finishes

• Cree® Integrated LEDs

• Compatible with Luxor® technology

• Phase and PWM dimmable

• Input voltage: 10-15V

Specifications

• Total Lumens^†:

  • 1LED: 78
  • ZDC: 34
• Input Voltage:
  • 1LED: 10 to 15V
  • ZDC: 11 to 15V
• Input Power (W):
  • 1LED: 2.0
  • ZDC: 3.6
• VA:
  • 1LED: 2.4
  • ZDC: 4.3
• Efficacy (Lumens/Watt):
  • 1LED: 37
  • ZDC: 21
• Color Rendering Index (CRI):
  • 1LED: 80+
  • ZDC: 80+
• Max Candela:
  • 1LED: 51
  • ZDC: 17.1
• Dimming
  • 1LED: PWM, Phase**
  • ZDC: PWM, Phase**
• Luxor Compatibility
  • Default
    • 1LED: Zoning
    • ZDC: Zoning
  • ZD Option
    • 1LED: Zoning/Dimming
    • ZDC: --
  • ZDC Option
    • 1LED: --
    • ZDC: Zoning/Dimming/Color
• Minimum Rated Life (L90 B10):
  • 1LED: 55,000 Hrs
  • ZDC: 55,000 Hrs
• BUG Rating
  • 1LED: B0-U0-G0
  • ZDC: B0-U0-G0

^† Measured using the 3,900K CCT lens. Multipliers for other CCTs include 0.80 (2,700K).

** For optimal performance, use a trailing-edge, phase-cut dimmer.
