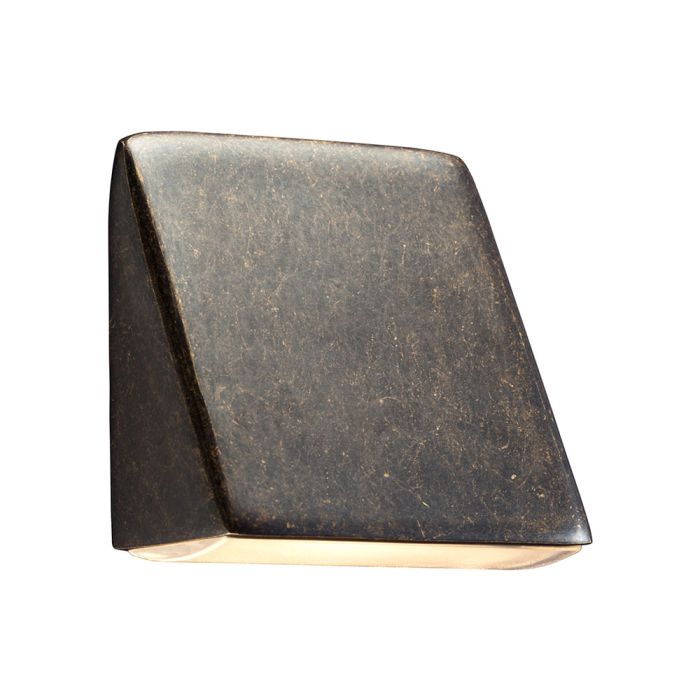

FX Luminaire MO Wall Light

Overview

The MO offers the same stylish looks and frosted glow of the PO in a larger 3 LED for more light output and is the only 20-watt equivalent wall light compatible with the Luxor® system. Four interchangeable faceplates and four color filters provide versatility for different lighting applications, including use as a walkway light and recessed-style can light. The MO is available in 1 or 3 LED in multiple metal and powder coat finishes.

Features & Benefits

• Die-cast brass and aluminum construction

• Natural, powder-coated, or antique brass

• Cree® integrated LEDs

• Color temperature filters

• Compatible with Luxor technology

• Phase and PWM dimmable

• Input voltage: 10-15V

Product Details

• Halogen Lumen Output Equivalent
  • 1 LED: 13-68 W
  • 3LED: 33-169 W
  • 3LEDT: 21-102 W
  • ZDC: 61 W

• Minimum Rated Life (L70)
  • 50,000 hrs
• Input Voltage
  • 1 LED: 10 to 15V
  • 3LED: 10 to 15V
  • 3LEDT: 10 to 15V
  • ZDC: 11 to 15V
• Input Power (W)
  • 1LED: 2.0
  • 3LED: 4.2
  • 3LEDT: 4.2
  • ZDC: 6.0
• VA
  • 1LED: 2.4
  • 3LED: 4.5
  • 3LEDT: 4.5
  • ZDC: 7.2
• Efficacy (Lumens/Watt)
  • 1LED: 18
  • 3LED:  21
  • 3LEDT: 29
  • ZDC: 19
• Color Rendering Index
  • 1LED: 82
  • 3LED: 82
  • 3LEDT: --
  • ZDC: 82
• Max Candela
  • 1LED: 31
  • 3LED: 79
  • 3LEDT: 195
  • ZDC: 51

Specifications Cont'd

•  Dimming
  • 1LED: PWM, Phase
  • 3LED: PWM, Phase
  • 3LEDT: PWM, Phase
  • ZDC: --
• RGBW Available
  • 1LED: No
  • 3LED: No
  • 3LEDT: No
  • ZDC: Yes
• Luxor Compatability (Default)
  • 1LED: Zoning
  • 3LED: Zoning
  • 3LEDT: --
  • ZDC: --
• Luxor Compatability (ZD option)
  • 1LED: Zoning/Dimming
  • 3LED: Zoning/Dimming
  • 3LEDT: Zoning/Dimming
  • ZDC: --
• Luxor Compatability (ZDC option)
  • 1LED:--
  • 3LED:--
  • 3LEDT: --
  • ZDC: Zoning/Dimming/Color
