FX Luminaire TM Path Light

Only %1 left
SKU
TM-SERIES

Note: Item does not qualify for Priority Processing. Please anticipate a delay in shipment.

FX Luminaire TM Series Path Lights (LED)

FX Luminaire TM Series Path Lights (LED)

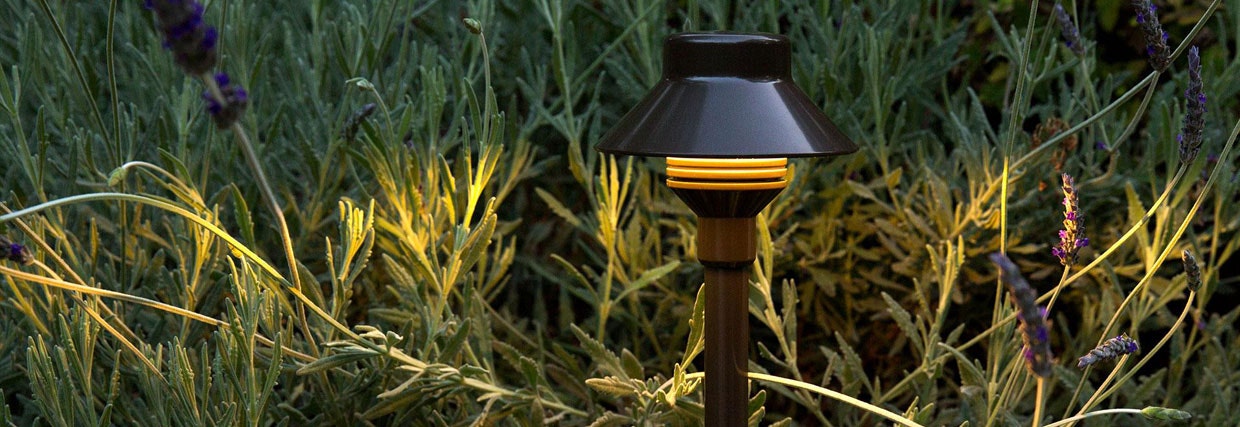

Designed for mid-sized landscapes, the TM provides unmatched elegance and function in the aluminum constructed category. Its small cap provides a stylish presentation, but doesn't compromise on shine. Not only does it accomplish the function of path lighting, it does so with grace and style.

Numbers

Quick Facts

  • LEDs - 1
  • Finishes - 13 Options
  • Material - Copper
  • Diameter - 4.4" / 11.13 cm
  • Height - 15" / 38.1 cm

Factory Installed Options

  • Top Assembly TMLEDTA
  • Top Finish WG, FW, AL, BZ, DG, WI, SB, FB
  • Riser Type A
  • Luxor Option ZD, ZDC†(Color)
  • Lamp 1LED, 3LED, ______â€
  • Riser Height 8RA, 12RA, 18RA, 24RA, 30R, 36RA (in inches)
  • Finish WG, FW, AL, BZ, DG, WI, SB, FB

EXAMPLE: Top Assembly-Top Finish + Riser Type-Luxor Option-Lamp-Riser Height-Riser Finish TMLEDTA-FB + A-ZD-1LED-18RA-FB

†Fixtures specified with ZDC Technology™ are available only in one circuit board configuration.

Do not specify a number of LEDs when ordering.

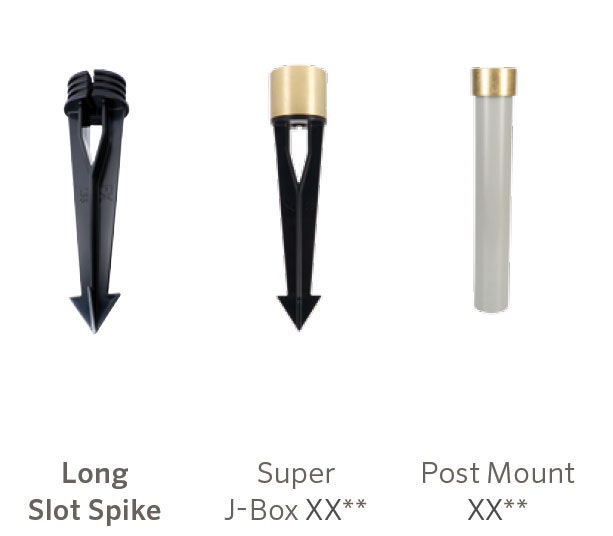

Mounting Options

Mounting

  • Long Slot Spike (250015840000) 2.5" x 10"
  • SuperJ-Box (SJ-XX**) 2.5" x 12"
  • Post Mount (PM-XX**) 2.5" x 13"
  • Versa Box (VB-050-XX**) 2.2" x 1.5"
  • 3-Prong Spike (250020020000) 5.1" Diam. x 9.0" tall

EXAMPLE: 753900 = Super Slot Spike

Powder Coat

  • WG = White Gloss
  • FW = Flat White
  • AL = Almond
  • BZ = Bronze Metallic
  • DG = Desert Granite
  • WI = Weathered Iron
  • VF = Verde Speckle
  • SB = Sedona Brown
  • FB = Flat Black

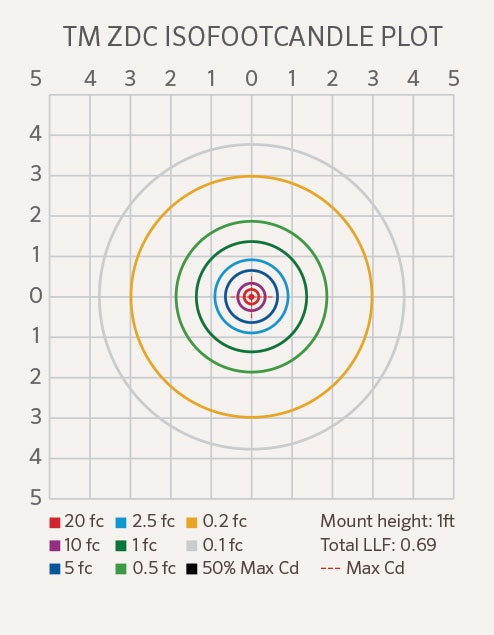

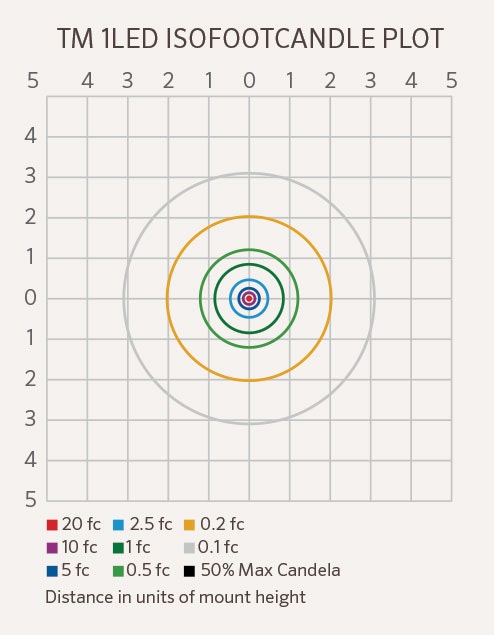

Photometrics

Photometrics

Photometrics

Photometrics

The TM and A-riser include your choice of 1 or 3LED board, riser size, finish, 3 ft. lead wire and a Long Slot Spike.

All TM path lights come standard with amber, green, blue and frosted filters

* May require longer lead time
** Denotes finish code

More Information
Brand FX Luminaire
Type Path Light
Warranty 10 Years
