FX Luminaire UN Wall Light

In stock
SKU
UN-SERIES
Free Shipping on Orders over $149
Sales Price $90.95 Our Price $159.00 You save 43%

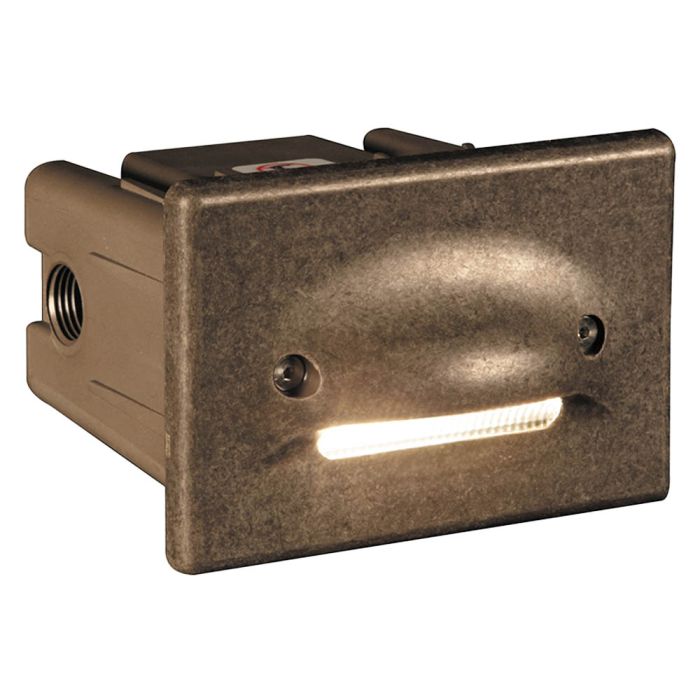

FX Luminaire UN Series Wall Lights (LED)

FX Luminaire UN Series Wall Lights (LED)

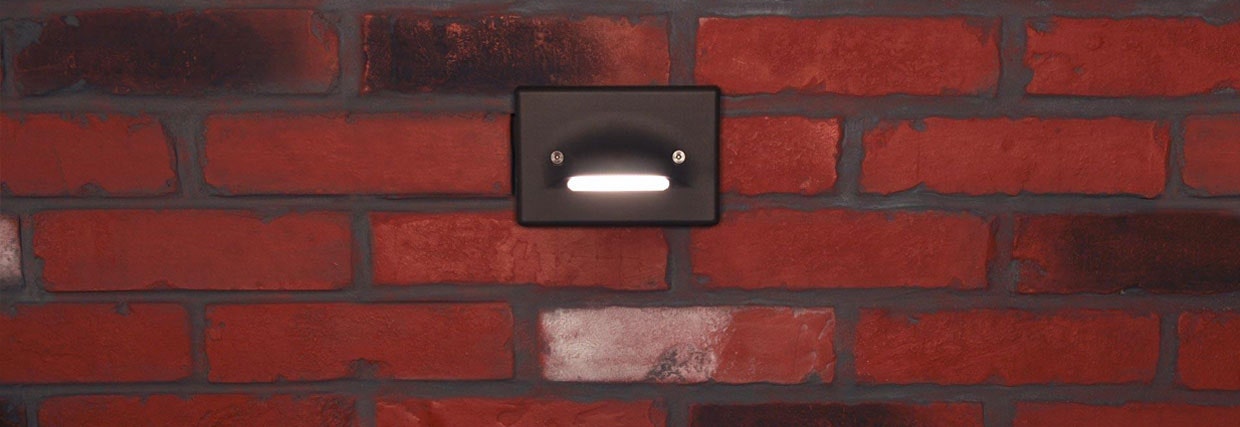

The UN provides all of the great features of the CP with gentler, more organic lines. FX also offers the UN in both brass and composite material for application flexibility. Like the CP, the UN washes walkways with a shadow-free smooth illumination, which highlights the detail in fine stone work or the richness of a redwood deck.

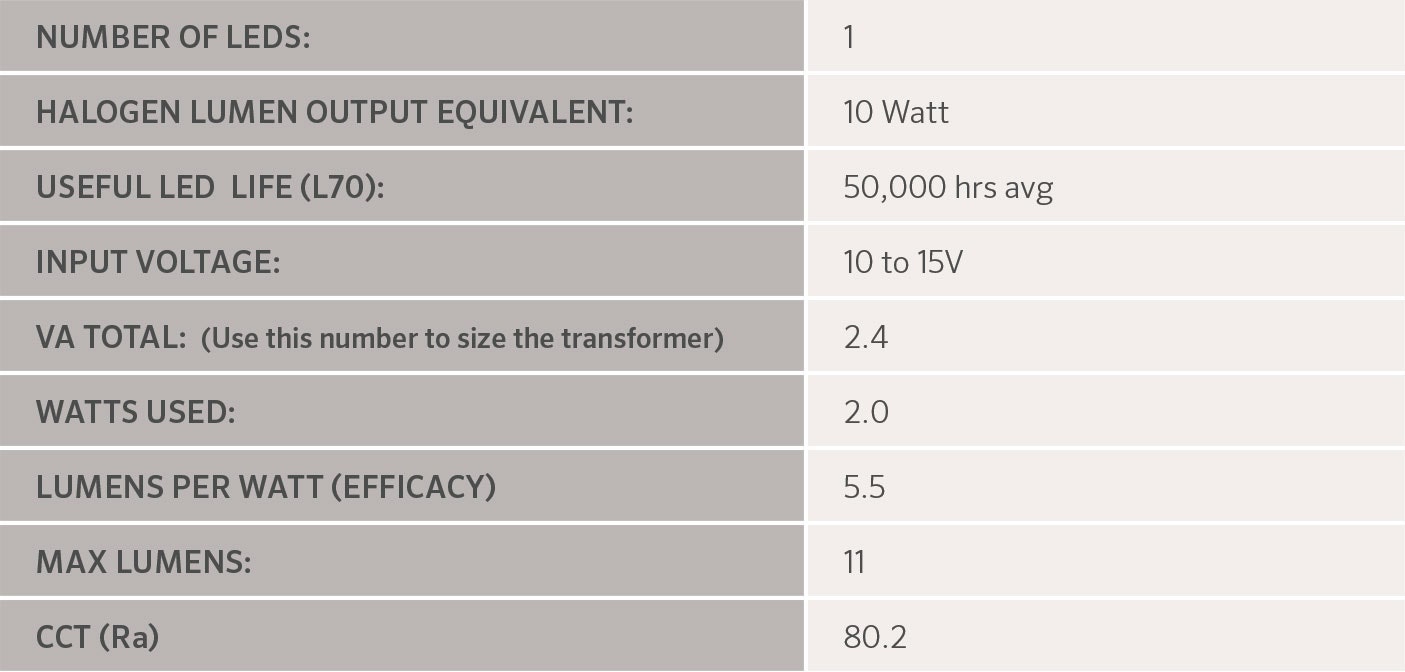

Numbers

Quick Facts

  • LEDs - 1
  • Finishes - 15 Options
  • Material - Brass/ Composite

Factory Installed Options

  • Fixture - UN
  • Optional ZD ZD (Refer to the Luxor page in the Lighting Control section)
  • Lamp 1LED (50,000 avg. life hours)
  • Finish AB*, AT*, NP*, BS, WG, FW, AL, BZ, DG, WI, VF, SB, FB, DT, CB

EXAMPLE: UN-ZD-1LED-CB = UN - ZD Option - 1LED Board - Camo Bronze Finish

Metals

  • AB = Antique Bronze* (On Brass)
  • AT = Antique Tumbled* (On Brass)
  • NP = Nickel Plate*
  • BS = Natural Brass

Powder Coat

  • WG = White Gloss
  • FW = Flat White
  • AL = Almond
  • BZ = Bronze Metallic
  • DG = Desert Granite
  • WI = Weathered Iron
  • VF = Verde Speckle
  • SB = Sedona Brown
  • FB = Flat Black

Composite

  • CB = Camo Bronze
  • DT = Desert Tan

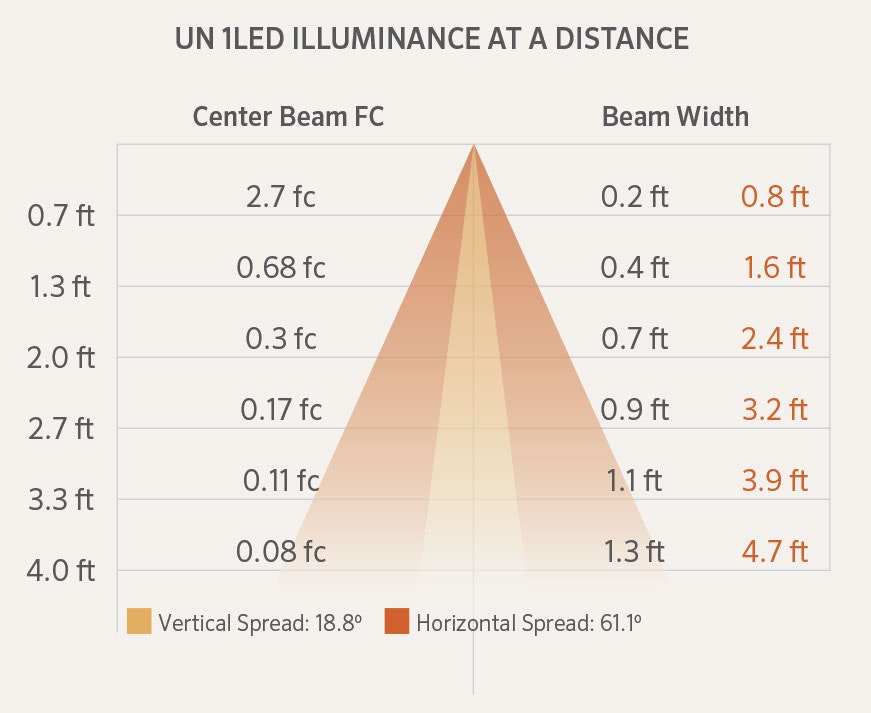

Photometrics

Photometrics

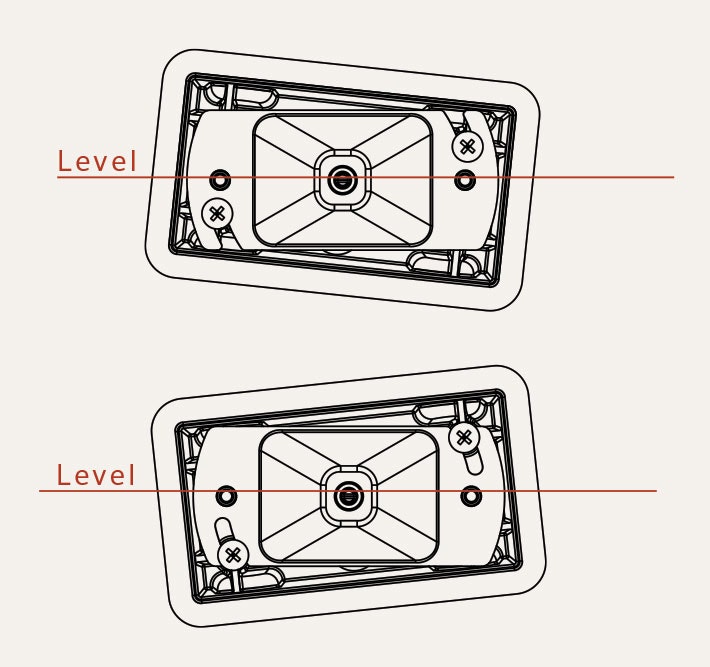

Perfectly Level Every Time

Schematics

The LevelX system allows the composite sleeve to be up to ⅜" out of level, in either direction, while still allowing the faceplate to be laser level.

The secret: The trim attaches to the adjustable reflector assembly – not the composite sleeve or body. Heavy foam gasket keeps light spill to a minimum

The UN includes a 1LED board, choice of faceplate finish, 8 ft lead wire and mounting sleeve.

All UN wall lights come standard with amber, and frosted filters

* May require longer lead time

More Information
Brand FX Luminaire
Series UN
Warranty 10 Years
Type Wall Light
