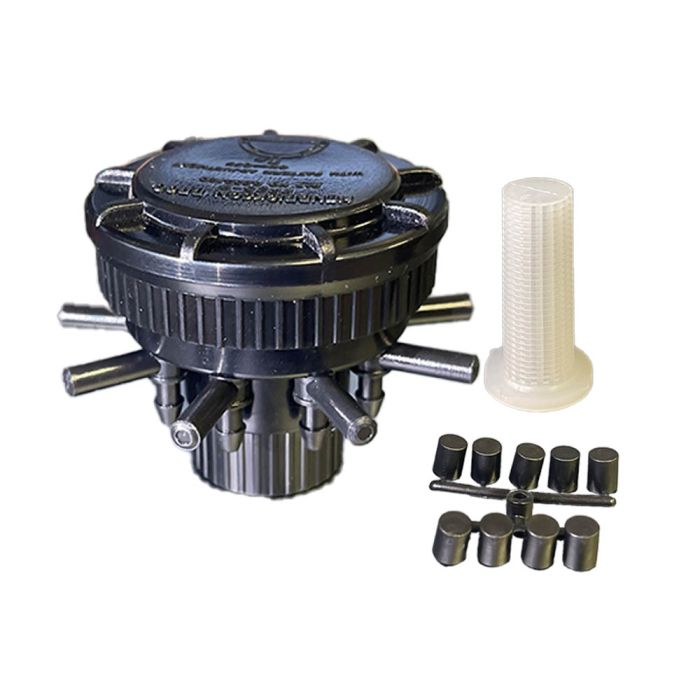

The PR25-9 is a 9 outlet pressure regulating drip manifold. The PR25-9 can be installed on any 1/2" riser or fitting and easily converts traditional spray systems to drip, micro spray,or micro stream bubblers.
Separate pressure regulation is not necessary since each PR25-9 automatically reduces inlet pressure. Ideal for planters, patios, or other areas with shrubs, trees or ground covers; the PR25-9 is especially useful in a confined area where mixed plant materials are present.
Pressure controlled outlets allow for 1 GPH to 20 GPH from each outlet
Fitted with 9 pressure controlled outlets per unit – separate pressure regulation is not necessary – saves time and money
Each outlet can support drip, micro sprays and/or micro stream bubblers
Product Details
1/2” FPT inlet
Recommended operating pressure: 20-100 PSI
Flow range per PR 25-9: .02 to 3.5 GPM (1 GPH to 210 GPH)
Pressure regulated range: 21-28 PSI
1/2” FPT inlet enables retrofitting to existing 1/2” risers or fittings
Inlet screen can be removed for cleaning
9 barbed outlets for use with 1/4” tubing (ID of .160 to .188)
Pattern control option allows individual adjustment of each outlet
