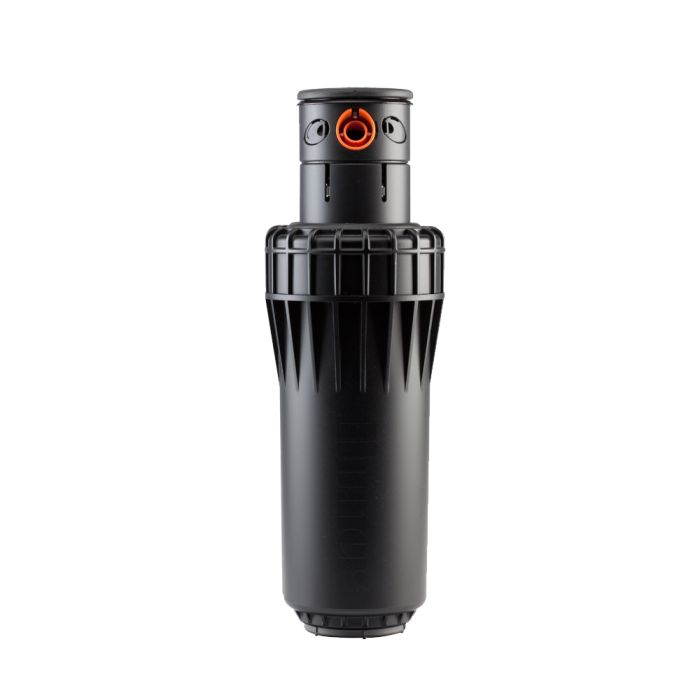

Hunter Full Circle Rotor with Check Valve and Opposing Nozzles 3 in. | I90-3RV

In stock
SKU
I90-3RV
Free Shipping on Orders over $149
Sales Price $120.25 Our Price $210.00 You save 43%

Hunter I90 3" Rotor Series

  • Overall height: ADV/36V: 11"
  • Pop-up height: 3"
  • Exposed diameter: 3½"
  • Inlet size: 1½"

The I-90 is Hunters longest distance rotor specifically designed for natural turf, parks, sports fields, and public areas. With a radius of up to 101 feet, the I-90 boasts the longest throw capability of all natural turf rotors. Yet, its reduced-size diameter and cushioned rubber cover make it the perfect choice for parks and wide-open lawn areas, as well as perimeter watering of athletic fields and horse arenas. The rotor is also easy to service, with a “jar-top” body cap that allows quick access to the filter screen and check valve with no extra pieces, parts, or tools required. The I-90 is offered in two models: a full-circle opposing-nozzle version or an adjustable arc model, each with color-coded nozzles that can be field-changed to match the specific needs of any large site.

Features & Benefits

Opposing Nozzle 360° Model

The opposing nozzle design offers excellent water distribution. With primary and secondary nozzles on opposing sides of the turret, streams arc in opposite directions as the sprinkler rotates for outstanding mid-range and close-in watering.

I-90 Dual Trajectory Color-Coded Nozzles

All I-90 Series rotors have color-coded nozzles for easy identification and, the nozzle numbers approximate the flow in gallons per minute. Choose from the eight standard 22.5-degree trajectory nozzles or the eight 15 degree nozzles for low-angle applications.

Standard 22.5 degree trajectory nozzles

Low-angle 15 degree trajectory nozzles

I-90 Reclaimed Water ID

Purple logo caps indicate the use of non-potable irrigation. They are available as a factory installed-option or as a replacement part.

I-90 Drain Check Valve (Up to 7 ft. elevation)

As the air in the system piping can cause long-term damage to rotors and plumbing, the drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.

Product Details

  • Model: 3"
  • Arc setting: Full Circle
  • Dual trajectory nozzle choices: 8 standard trajectory (22.5°), 8 low angle trajectory (15°)
  • Nozzle range: #25 to #73
  • Exclusive PressurePort nozzle technology
  • Through-the-top arc adjustment
  • Quick check arc mechanism
  • Water lubricated gear-drive
  • Standard factory installed nozzle: #53
  • Factory installed rubber logo cap
  • Warranty period: 5 years
Brand:
Hunter
Riser Material:
Plastic
Pop-Up Height:
3 in.
Pressure Range (PSI):
70-120
Series:
I90
Warranty:
5 Years
Spray Radius:
63 ft. - 101 ft.
Spray Pattern:
Full Circle (360)
Type:
Rotor
Body Height:
11
Application:
Commercial
Inlet Size:
1-1/2
Check Valve:
Check Valve
Advance Features:
Check Valve, Non-Potable / Reclaimed Water
Brochure (337.09 kB)
Manual (366.50 kB)
Specifications (218.10 kB)
