The simple-to-install HC flow meter, now with additional range options to accommodate larger pipe sizes, allows customers to better monitor flow rates in systems with Hydrawise-enabled Wi-Fi controllers. When connected to the Hydrawise platform, the HC flow meter provides a convenient option to detect, monitor, and report critical flow zone data and total system flows.
By including an HC flow meter as part of a Hydrawise system installation, customers add an additional layer of landscape protection. This ensures their investment is monitored, their plants are healthy, and their outdoor living space remains in excellent condition.
For contractors, a flow meter is a great way to build their businesses through increased offerings and top-level customer service, as problems can be addressed immediately before landscape degradation occurs. For landscape designers, the HC flow meter adds an extra security that helps preserve their thoughtfully designed landscapes.
The HC flow meter connects to Hydrawise-enabled controllers, allowing for:
The HC flow meter now accommodates additional ranges. The flow meter designed for the U.S. now has four options covering ¾", 1", 1½", and 2", all with NPT threads and an on-meter, dial-type gauge that displays readings in U.S. gallons.
Compatible with HC, HPC, Pro-HC, and HCC
Provides station-level flow totals
Sends automatic alerts in the event of high-flow, low-flow, or unscheduled flow conditions
Flow reports within Hydrawise software can display total system water use and individual station water use for accurate water budgeting and tracking
Robust brass construction with union fittings for easy installation and removal for winterization
Analog dial on the face of the meter displays daily flow totals and a leak detector

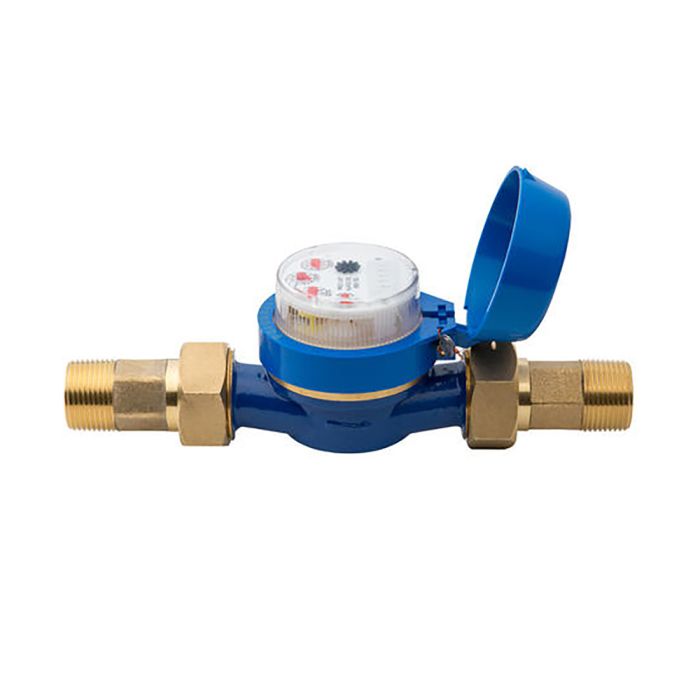

HC Flow Meter Specifications
|HC-075-FLOW (¾")||HC-100-FLOW (1")||HC-150-FLOW (1½")||HC-200-FLOW (2")|
|Minimum flow (GPM)||0.22||0.3||0.88||1.98|
|Maximum recommended flow (GPM)||15||30||66||105|
|Maximum flow rate (GPM)||21||34||88||132|
|Dial reading (US gal)||1 pulse per 0.1 U.S. gal||1 pulse per 1 U.S. gal||1 pulse per 1 U.S. gal||1 pulse per 1 U.S. gal|
