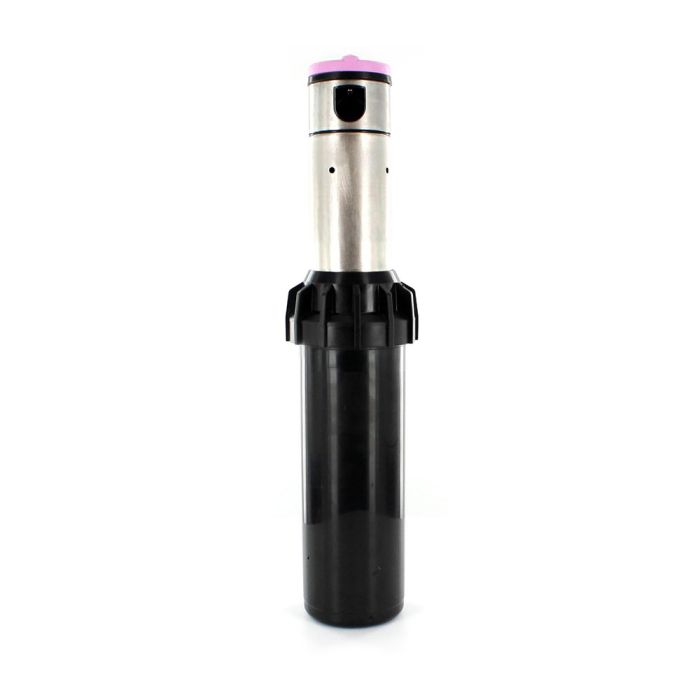

Hunter I-20 Stainless Steel Rotor with Check Valve (Non-Potable) 4 in. | I20-04-SS-R

Name: Hunter I-20 Stainless Steel Rotor with Check Valve (Non-Potable) 4 in. | I20-04-SS-R
Brand: Hunter
SKU: I20-04-SS-R
Price: 30.6 USD
Availability: InStock

SKU

I20-04-SS-R

Sales Price $30.60 Our Price $54.51 You save 44%

Overview

Hunter I-20 Stainless Steel Rotor with Check Valve (Non-Potable) 4 in.

Features & Benefits

Models: 4"
Arc setting: 50 to 360 degrees
Factory installed rubber cover
Through-the-top arc adjustment
Quick check arc mechanism
Water lubricated gear-drive
Includes: set of 12 nozzles (8 standard and 4 low angle), 1 adjustment tool per order, 1 set instructions

Operating Range

Radius: 17' to 46'
Flow Rate: 0.36 to 14.8 GPM
Recommended pressure range: 25 to 70 PSI
Operating pressure range: 20 to 100 PSI
Precipitation rates: 0.4 in/hr approx.
Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees

Dimensions

Overall Height: 7-1/8"
Pop-up Height: 4"
Exposed Diameter: 1-3/4"
Inlet Size: 3/4" female NPT

Specs

More Information
Brand	Hunter
Product Type	Rotors
Application	Residential And Commercial
Body Height	7-1/8
Inlet Size	3/4 in.
Pressure Range (PSI)	25-70
Warranty	5 Years
Spray Pattern	Part Circle Adjustable (50 - 360)
Spray Radius	17 ft. - 46 ft.
Advanced Features	Check Valve, Non-Potable / Reclaimed Water, Flow Shut-Off
Series	I20
Pop-Up Height	4 in.
Riser Material	Stainless Steel
Check Valve	Check Valve
