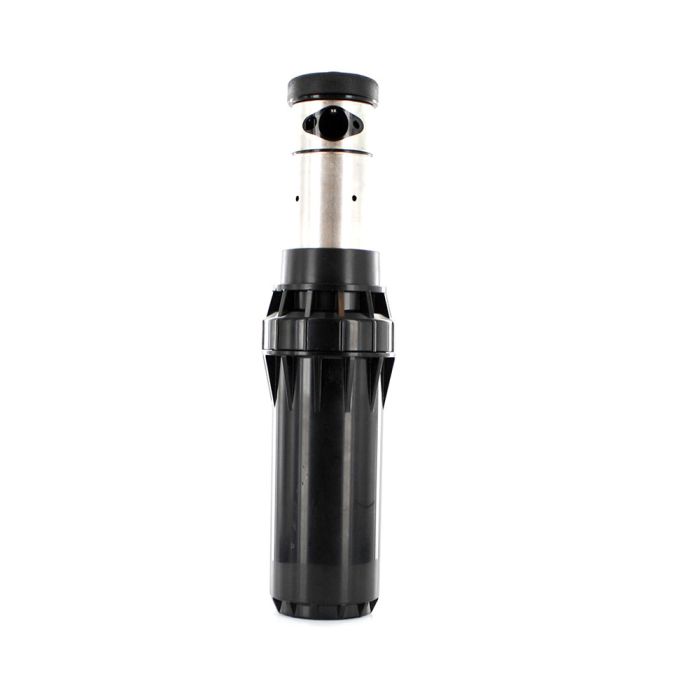

Hunter I-40 Stainless Steel Part Circle Stainless Steel Rotor with Check Valve 4 in. | I40-04-SS

SKU
I40-04-SS
Free Shipping on Orders over $149
Sales Price $68.97 Our Price $148.95 You save 54%
Quantity of 12
$67.59 / each

Hunter I-40 Stainless Steel Full Circle Stainless Steel Rotor with Check Valve 4

Overview

  • Hunter I-40 Stainless Steel Stainless Steel Rotor
  • Full Circle with Check Valve
  • Pop-Up Height: 4 inches

Features & Benefits

  • Models stainless riser: 4"
  • Arc setting: 360 degrees
  • Factory installed rubber cover
  • Nozzle choices: 12
  • Nozzle ranges I-40: #8 to #25
  • Through-the-top arc adjustment
  • Quick check arc mechanism
  • Water lubricated gear-drive
  • 1 adjustment tool per order

The I-40 is a tough commercial rotor that delivers water with accuracy and efficiency at distances up to 70 feet. Featuring diverse three-port nozzle options, a non-strippable drive, and a thick rubber cover built to prevent injury; it's no wonder this rotor is found in more stadiums than any other in the world. With the strength of stainless steel, the I-40 is built to last in the harshest sports, public park, and commercial environments. If efficiency, effective irrigation, and beautiful results are the goal, the I-40 is the irrigation professional's best solution.

Opposing Nozzle 360° Model

The opposing nozzle design offers excellent water distribution. With primary and secondary nozzles on opposing sides of the turret, streams arc in opposite directions as the sprinkler rotates for outstanding mid-range and close-in watering.

Automatic Arc Return

This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.

Non-strippable Drive

The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.

Part and Full Circle in One Model

Patented non-reversing 360 for part- and full-circle in one model, from 50 to 360 degrees.

Color Coded Nozzles

Nozzles are easier to differentiate in the field for quick reference and simple installation.

Optional Reclaimed Water ID

Purple caps indicate where non-potable irrigation water is being used.

Stainless Steel Riser

For unforgiving soil conditions, unpredictable climates, or heavy foot traffic, stainless steel is the best choice

Drain Check Valve (Up to 10 ft. of Elevation)

The drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.

Product Details

  • Radius I-40: 44' to 69'
  • Radius I-40-ON: 52' to 76'
  • Flow rate I-40: 7.6 to 29.5 GPM
  • Flow rate I-40-ON: 13.0 to 33.7 GPM
  • Recommended pressure range: 40 to 100 PSI
  • Operating pressure range: 40 to 100 PSI
  • Precipitation rates: 0.4 in/hr approx.
  • Nozzle trajectory: 25 degrees
  • Overall Height: 7-7/8"
  • Pop-up Height: 4"
  • Exposed Diameter: 2"
  • Inlet Size: 1" female NPT
More Information
Brand Hunter
Type Rotor
Application Commercial
Body Height 10-1/4
Inlet Size 1 in.
Pressure Range (PSI) 40-100
Warranty 5 Years
Spray Pattern Part Circle Adjustable (50 - 360)
Spray Radius 44 ft. - 69 ft.
Advanced Features Check Valve
Series I40
Pop-Up Height 4 in.
Riser Material Stainless Steel
Check Valve Check Valve
Brochure (182.33 kB)
Manual (525.09 kB)
Specifications (269.93 kB)
