Hunter ICC2 8 Station Indoor/Outdoor Plastic Controller | I2C-800-PL

In stock
SKU
I2C-800-PL
Free Shipping on Orders over $149
Sales Price $221.95 Our Price $436.45 You save 49%

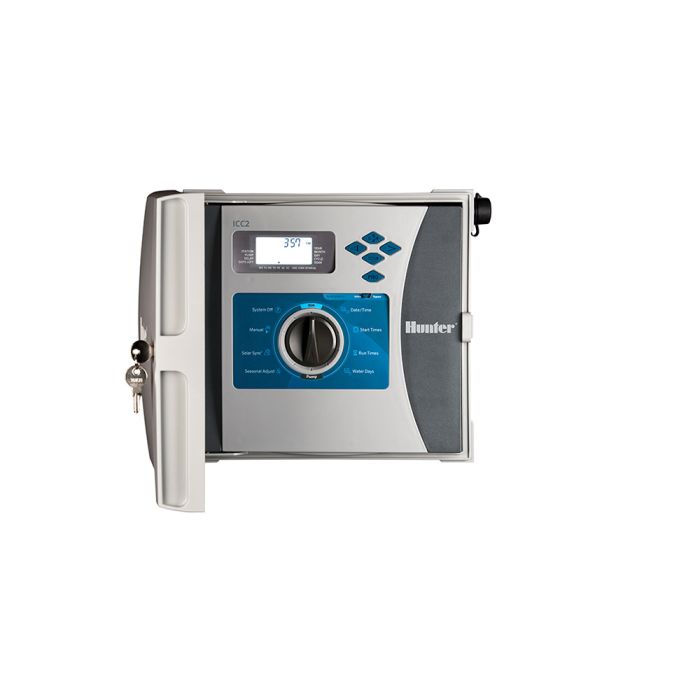

Hunter ICC2 8 Station Indoor/Outdoor Plastic Controller

  • Zones: 8
  • Expandability: Modular
  • Sensor Compatible: Rain, Freeze, Solar

Features & Benefits

8-station gray steel wall mount, outdoor

ICC2 is a value-packed, light-to-mid size commercial irrigation controller that delivers more than you expect, just like its famous predecessor. It is designed to control larger projects (up to 54 stations) and offers the water savings you expect from a Hunter controller.

ICC2 can run any two of its four automatic programs simultaneously. The ICC2 face pack and station output modules (with enhanced surge protection) are compatible with the original ICC controllers, in four and eight-station increments. An optional expansion module allows up to 54 stations in ICC2 metal enclosures and 38 stations in plastic enclosures.

ICC2 offers simple programming with a high-visibility backlit display and customizable language overlays. It also includes advanced features like Easy RetrieveTM memory backup, Cycle and Soak, and Seasonal Adjustment.

ICC2 controllers are prewired for remote control with Hunter ROAM and ROAM XL transmitters, and have built-in Solar Sync for automatic water savings, with an optional sensor. ICC2 is available as a plastic outdoor wall mount, metal outdoor wall mount, stainless steel wall mount, or plastic pedestal. Optional matching metal pedestals in gray or stainless are also available.

Product Details

  • Number of stations: Up to 54 (metal enclosure) or 38 (plastic enclosure)
  • Type: Modular, expansion modules in 4 and 8 station increments, plus 22-station supermodule
  • Enclosures: Outdoor, metal, plastic, stainless steel, and plastic pedestal (120/230 VAC)
  • Independent programs: 4, any two may run simultaneously
  • Start times: 8 per program
  • Max station run time: 12 hours
  • Warranty period: 5 years

Electrical Specifications

  • Transformer input: 120/230 VAC, dual tap Transformer output: 1.4 A
  • Current draw: 120 VAC, Standby 0.13 A (3.9W), Max 0.35 A, (19.85 W)
  • Current draw: 230 VAC, Standby 0.12 A (5.56W), Max 0.22 A (23.5 W)
  • Station output: Up to .56 A
  • P/MV output: Up to .56 A
  • Sensor inputs: 1 (Clik or Solar Sync)
  • Operating temperature: 0 Degrees to 140 Degrees F

Approvals

  • CE, UL, cUL, RCM, FCC
  • Enclosure rating:
    • Plastic, IP-54,
    • Steel, IP-54
    • Plastic Pedestal, IP-24
  1. Run: Normal dial position for automatic operation.
  2. Date/Time: Set current date and time.
  3. Start Times: Set 1 to 8 start times in each program.
  4. Run Times: Set each station run time.
  5. Water Days: Select individual, odd, even, or interval watering days.
  6. Pump: Turn pump or master valve on or off for each station.
  7.  Seasonal Adjust: Change all run times in all programs by a percentage (5% to 300%).
  8. Solar Sync: Set up and adjust option for Hunter Solar Sync sensor.
  9. Manual: Immediately activate a one-time watering of a single station.
  10. System Off: Used to stop all watering until the dial is returned to the RUN position.
More Information
Brand Hunter
Conserva Catalog Yes
Expandability Modular
Power Source AC Powered
Type Controller
Number of Programs 4
Start Times Per Program 8
Max Station Run Time (HRS) 12
Sensor Inputs 1
Indoor Yes
Outdoor Yes
Sensor Compatible Rain, Freeze, Solar
Rain Sensor Compatible Yes
Solar Sensor Compatible Yes
Freeze Sensor Compatible Yes
Application Residential|Light Commercial|Commercial
Warranty 5 Years
Series ICC2
Zones 8
Enclosure Type Indoor/Outdoor
Manual (6.12 MB)
