Hunter MP Rotator 90 - 210 Degree Adjustable Rotary Nozzle 6 - 12 ft | MP800SR90

In stock
SKU
MP800SR90
Free Shipping on Orders over $149
Sales Price $5.95 Our Price $14.18 You save 58%
Case of 10
$5.83 / each
Case of 50
$5.71 / each

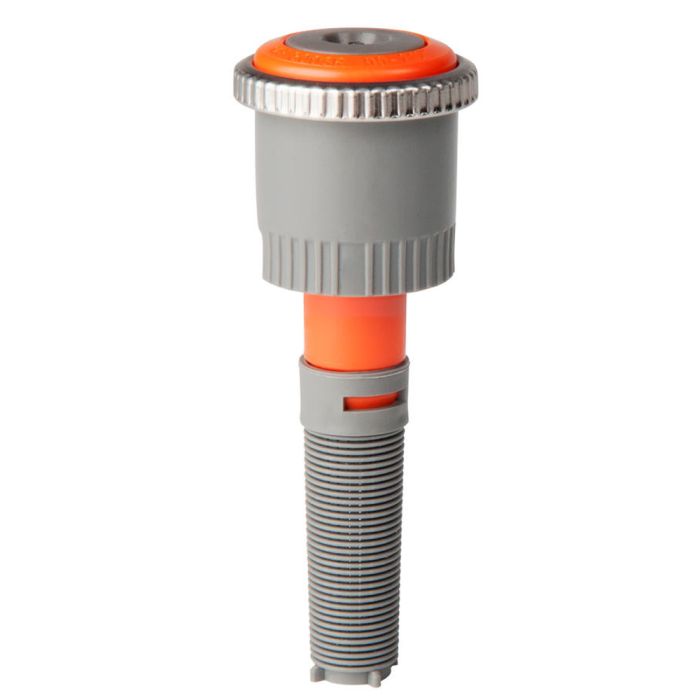

Hunter MP Rotator 90 - 210 Degree Adjustable Rotary Nozzle 6 - 12 ft

  • Type: 90 - 210 Degree Adjustable Rotary Nozzle
  • Distance: 6 - 12 feet
  • Max PSI: 55

Features & Benefits

As the newest member of Hunter's popular MP800, the MP815 extends a 0.8”/hr (20 mm/hr) matched precipitation rate to a convenient larger maximum radius of 16’ (4.9 m). Thanks to this capability, the MP800 offers increased system-level design and retrofit applications.

The previously released MP800SR covers distances as short as 6’ (1.8 m). Now, with the addition of the MP815, the MP800 can irrigate spaces up to 16’ (4.9 m) with uniform coverage and the same 0.8”/hr (20 mm/hr) matched precipitation rate.

Hunter is the only company to offer three matched precipitation rate options for pop-ups, giving customers more choices for irrigation management. To maximize water-use efficiency, choose the standard MP Rotator, which has a slow precipitation rate of 0.4”/hr (10 mm/hr). This is perfect for tight soils, as well as steep slopes to eliminate runoff. Use the 0.8”/hr (20 mm/hr) precipitation rate of the MP800 for medium-grade soils, gentle slopes, and small spaces.

Both the standard MP Rotator family and the MP800 maintain all the benefits of the MP Rotator's patented design. Slow rotation of the nozzle allows for strong, wind-resistant streams that cover their full targeted range with a high distribution uniformity. For increased reliability in the field, the unique double-pop feature prevents debris from entering the nozzle, and with only one moving part, the MP Rotator is built for durability in even the toughest conditions.

  • Provides coverage from 6’ to 16’
  • Radius can be reduced up to approximately 25% on all models
  • Color-coded for easy identification
  • Removable filter screen prevents large objects from clogging nozzle
  • Wind-resistant multi-stream technology
  • Adjustable arc and radius

Advanced Features

Automatic Matched Precipitation

The MP Rotator® has the unique ability to control the amount of water flowing through the nozzle at various arc and radius settings, resulting in matched precipitation regardless of the nozzle setting.

Double-Pop

The MP Rotators nozzle pops up from its protected position only after the riser is fully extended, providing superior defense against dirt and debris.

Distribution Uniformity

The various streams of the MP Rotator allow it to target all areas of the landscape evenly, yielding superior uniformity over traditional spray nozzles. Each stream targets specific areas to achieve higher efficiency and even coverage.

Low Precipitation Rate

The standard MP Rotator line applies water at 0.4 in/hr, while the MP800 has a precipitation rate of 0.8 in/hr. Either choice will avoid runoff, saving water and preventing erosion.

Reliable Operation

Patented double-pop nozzle keeps the sprinkler free of external debris.

Accurate Adjustments

Adjustable arc and radius with matched precipitation. Radius can be reduced up to 25%.

Efficient Application

Multiple rotating streams provide even coverage and wind resistance, eliminating dry spots.

Durable

Removable inlet filter keeps sprinkler free of internal debris.

Easy Installation

Compatible with all spray bodies; perfect for retrofits. Use the MP-HT for female-threaded spray bodies.

Product Details

Operating Specifications

  • Recommended operating pressure: 40 PSI
  • To achieve minimum radius setting: 30 PSI
  • MP800SR-90 uses a 60-mesh built-in nozzle filter
  • MP800SR-360 and MP815 use a 40-mesh built-in nozzle filter
  • Recommended filtering when operating on dirty water
  • Hunter's HY filters are a great solution for zone-specific MP800 arrangements
MP800SR90 31’ - 35’ (9.4 to 10.7m)
ARC PSI RADIUS FT. FLOW GPM FLOW GPH  PRECIP IN/HR  PRECIP IN/HR
30 8 0.17 9.6 0.9 1.04
35 9 0.21 11.4 0.89 1.03
40 10 0.23 13.8 0.83 0.96
45 11 0.25 15 0.8 0.92
50 11 0.27 16.2 0.79 0.92
55 12 0.28 16.8 0.8 0.93
30 8 0.33 19.2 0.88 1.02
35 9 0.38 22.2 0.85 0.99
40 10 0.42 25.2 0.81 0.93
45 11 0.46 27.6 0.77 0.88
50 11 0.48 28.8 0.76 0.88
55 12 0.5 30 0.73 0.84
30 8 0.35 22.2 0.8 0.93
35 9 0.38 26.4 0.77 0.89
40 10 0.43 29.4 0.81 0.91
45 11 0.45 31.8 0.82 0.95
50 11 0.49 33.6 0.73 0.85
55 12 0.56 34.8 0.7 0.81

Bold = Optimal pressure for the MP Rotator is 40 PSI. This can easily be achieved by using the MP Rotator with the Hunter Pro-Spray PRS40 pressure regulated at 40 PSI.



Related Articles & Videos

Articles

Videos

Brand:
Hunter
Conserva Catalog:
Yes
Type:
Rotary Nozzle
Max PSI:
55 PSI
Operating PSI:
30 - 55 PSI
Warranty:
Catalog, Search
Spray Pattern:
Adjustable Arc
Connection:
Female
Spray Radius:
6 - 12 ft (MP800SR)
Brochure (1.07 MB)
Cutsheet (264.81 kB)
Guide (3.45 MB)
Guide (1.15 MB)
