Hunter Pro-C Front Panel | 821501

In stock
SKU
821501
Free Shipping on Orders over $149
Sales Price $45.65 Our Price $84.00 You save 46%

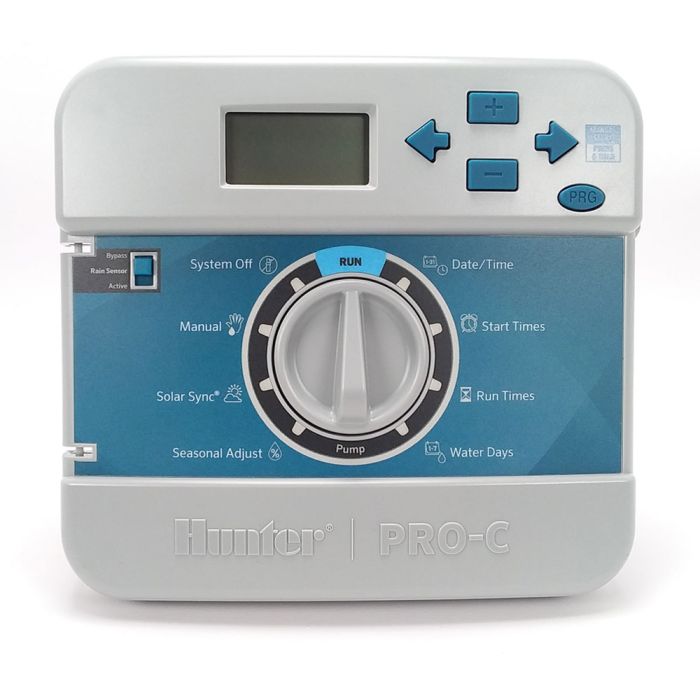

Hunter Pro-C Front Panel - 821501

  • Hunter Pro-C Front Panel Replacement Part (821501)
  • Works with the Pro-C Hunter Controllers include all PC-400 and new style PCC models

This Pro-C panel is compatible with production models 2014 to current. Compatible controllers all PC-400 and new style PCC models. The number of stations for the Pro-C are 4 - 16, PCC 6 & 12.

Features & Benefits

  • Independent irrigation programs: 3
  • Independent lighting programs: 3
  • Start times per program: 4
  • Max. station run time: 6 hours
  • Solar Sync dial position: now available with built-in Solar Sync programming for increased installation efficiency
  • Solar Sync delay feature: allows adjustments to be postponed for up to 99 days
  • Cycle and Soak feature built in: reduces runoff
  • Lighting programs built in: allows the ability to add landscape lighting control
  • Added knockouts offer additional flexibility
  • Programmable rain delay: prevents watering for an extended period as needed
  • Non-volatile memory: keeps programs indefinitely” without battery backup
  • Rain sensor bypass: allows the controller to ignore sensor devices when needed
  • One touch manual start and advance: allows user to start or test any station
  • Warranty period: 2 years

Product Details

  • Years in production (2014-Current)
  • Compatible controllers = All PC-400 and new style PCC models.
  • Number of stations: Pro-C: 4 - 16, PCC 6 & 12
  • Type: Pro-C: Modular, PCC: Fixed
  • Enclosures: indoor and outdoor plastic
  • Materials: Plastic
  • Color: Grey

Related Articles & Videos

Articles

Videos

Replacement Parts

Hunter Pro-C Front Panel

How to Replace a PRO-C Front Panel

Note: The Pro-C controller is truly modular in design. This means that most components of the controller can be removed and replaced if needed. For the newer style Pro-C (blue panel and buttons) the part number for the front panel is 821501. The part number for the older style Pro-C controllers (green buttons) is 526200.

Steps 1 Steps 2
Valve and Boxes

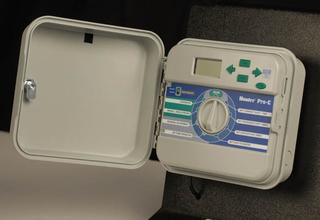

To remove the Pro-C's front panel, start by removing all power from the controller. Unplugging the transformer or shutting off the circuit breaker will be necessary to do this properly.

Valve and Boxes

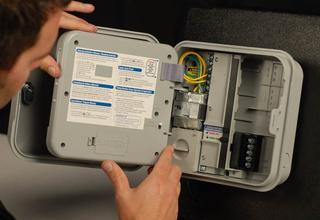

Open the front panel similar to how the controllers door opens, this should expose the battery compartment on the back of the front panel.

Steps 3 Steps 4
Valve and Boxes

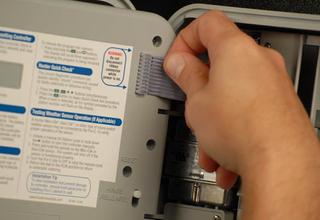

Locate the gray ribbon cable in the upper right corner on the back of the front panel.

Valve and Boxes

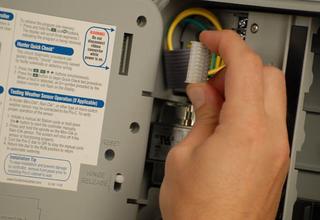

Disconnect the ribbon cable from the back of the front panel by carefully pulling the plastic cable connector off the back of the front panel.

Steps 5 Steps 6
Valve and Boxes

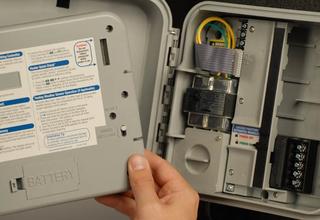

Locate the Hinge Release switch below the ribbon cable connector on the back of the control panel. Push down on the white tab, the hinge pins will retract and allow the front panel to come free from the cabinet.

Valve and Boxes

After the panel is removed you can reverse this process to install the new face panel.

Brand:
Hunter
Front Panel:
Yes
Type:
Front Panel
Controller Compatibility:
Pro-C
