Note: Some States Require Pressure Regulating Sprays (PRS) All spray sprinkler bodies sold in the following states will require pressure regulating stems (PRS) and EPA WaterSense certification on and after the dates listed below: Vermont: July 1, 2020 California: October 1, 2020 Colorado: January 1, 2021 Hawaii: January 1, 2021 Washington: January 1, 2021

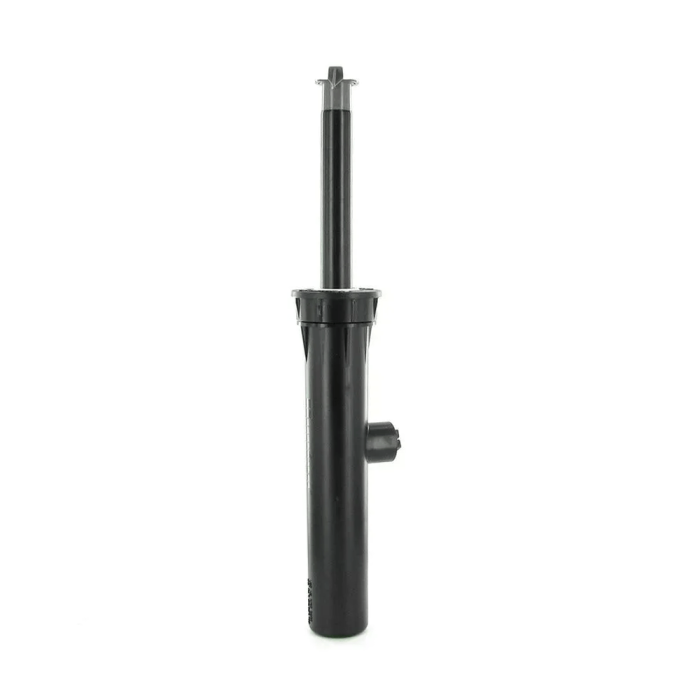

Hunter Pro-Spray sprinkler heads are engineered to ensure long-lasting, reliable performance in residential applications. Available in heights from shrub to 12Ã¢â‚¬Â, Pro-Spray heads feature durable construction that is second to none, exclusive body cap design which does not leak even when loosened, and a reliable, easy to adjust two-piece ratchet. Pro-Sprays are compatible with Pro Adjustable Nozzles, Pro Fixed Nozzles, and MP Rotators. All models also include a user-friendly pull-ring flush cap to keep debris and clogging to a minimum. The Hunter Pro-Spray sprinkler head is compatible with all industry standard female nozzles offering a high degree of flexibility.
Application: Residential / Commercial
Models: Shrub, 2 in., 3 in. 4 in. 6 in. 12 in.
Compatible with all female threaded nozzles
Side inlet (SI) version available in 6 in. and 12 in.
Warranty period: 5 years
Engineered to ensure long-lasting, reliable performance in residential applications
Reliable, easy to adjust two-piece ratchet
Sprinkler head is compatible with all industry standard female nozzles offering a high degree of flexibility.
Co-Molded Wiper Seal
The industrys most rugged wiper seal is co-molded from two types of chemical and chlorine-resistant materials. This pressure activated, multi-function wiper seal reduces flow-by, operates at low pressures, and allows more sprinkler heads to be installed on the same zone. Its innovative design prevents debris from entering the seal when the riser is retracted, reducing riser stick-ups.
Industrys Srongest Spray Body
The Pro-Spray line incorporates a heavy-duty ribbed body and durable cap engineered to withstand the harshest environments, including the rigors of foot traffic and the abuses of heavy machinery. In addition, the buttress thread design provides superior strength in cap-to-body gripping capacity helping the head to withstand high inlet surge pressures.
The industry's strongest spring for positive retraction under any conditions.
Optional Check Valve
Optional check valves eliminates drainage at heads installed on slopes, protecting landscapes from damage and erosion while reducing water waste. Choose from the convenience of factory-installed check valves or the flexibility of field installation.
Innovative Seal Design
Pedestrian traffic, landscaping equipment, temperature changes, and cycling pressures can often cause body caps to loosen. Most spray bodies utilize an O-Ring, which breaks seal immediately after loosening. The Pro-Spray can withstand more than one full 360º turn and remain sealed at any pressure.
Recommended pressure range: 15 to 100 PSI
Retracted height: 8 in.
Pop-up height: 6 in.
Exposed diameter: 2 in.
Inlet size: ½ in.
Factory Installed Options
Drain check valve (up to 10 of elevation)
Check valve available on 4 in. 6 in. 12 in.
Reclaimed water ID cap
User Installed Options
Drain check valve (up to 10 of elevation; P/N 437400SP)
