Irritrol 200B In-Line / Angle Valve with Flow Control 1-1/2 in. FPT | 216B

In stock
SKU
216B
Free Shipping on Orders over $149
Sales Price $64.95 Our Price $100.30 You save 35%
Case of 10
$63.65 / each

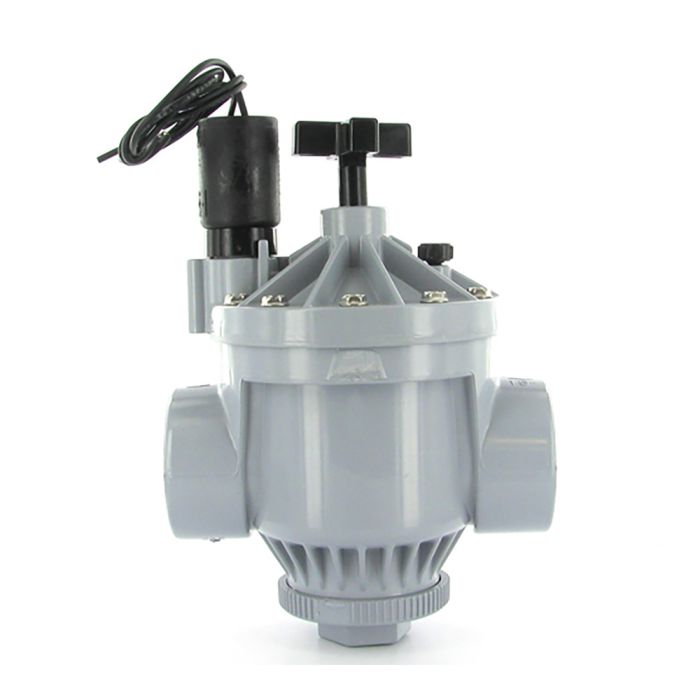

Irritrol 216B 1.5 inch Globe/Angle Valve with Flow Control

  • 1½" Irritrol 216B Valve
  • With Flow Control
  • 1½" Female Threaded Inlet/Outlet

Features & Benefits

The Irritrol 200B Series globe/angle valves have built their popularity on a proven record of reliability and a reputation for offering valuable features at an affordable price. The 200B Series provides manual internal and external bleed, heavy-duty, UV-resistant PVC construction, stainless steel hardware, a double-beaded diaphragm and a captive solenoid plunger.

  • Heavy-duty, corrosion- and UV-resistant PVC construction with stainless steel spring and hardware provides consistent operation
  • Slow-closing design reduces water hammer and resulting stress on the system
  • Rugged, double-beaded SANTOPRENE diaphragm ensures a leak-proof seal
  • Internal and external bleed (flush mode) allows for manual operation
  • Accepts OmniReg modular pressure regulator ensures consistent performance
  • High-strength ribbed bonnet and bottom inlet increases durability
  • Unique three-way stainless steel Bonnet: Screws accept Phillips, flat-blade and hex-driver tools for easy servicing without removal from the system

Added Features

  • Flow control allows precise adjustment and manual shutoff
  • Buna-N valve seat seal
  • Unique threaded inlet plug O-ring seal prevents leaks
  • Encapsulated injection-molded solenoid with a captive hex plunger
  • Five-year warranty

Product Details

Operations Specifications

  • Flow range: 5-120 GPM
  • Pressure range: 20-150 psi

Electical Specifications

  • Solenoid: 24 V ac
  • Inrush volt-amp: 24 V ac-9.6 VA
  • Inrush current: .4 amp
  • Holding volt-amp: 24 V ac-4.8 VA
  • Holding current: .2 amp

Dimensions

  • 214B: H: 6 12", W: 2 12", L: 4 12"
  • 216B: H: 7 34", W: 4 14", L: 5 12"
  • 217B: H: 8 34", W: 5 38", L: 6 14"
Friction Loss Data
FLOW RATE - GPM
MODEL SIZE GLOBE ANGLE 5 10 15 13 30 40 50 60 80 100 120
214B 1" G 3.36 2.60 1.82 2.35 5.40
A 3.09 2.20 1.48 1.98 4.00
216B 1 ½" G       3.04 2.66 2.33 2.97 4.14 5.62
A       2.76 2.24 1.99 2.30 3.10 4.42
217B 2" G       2.00 1.93 1.73 1.55 1.68 2.99 4.85 6.31
A       2.00 1.93 1.73 1.55 1.59 2.15 3.27 4.88
Pressure loss data are derived from valves independently tested by CIT, Fresno, CA.



Related Articles & Videos

Articles

Videos

More Information
Brand Irritrol
Conserva Catalog Yes
Type Valve
Body Material Heavy-Duty PVC
Application Residential
Solenoid Yes
Warranty 5 Years
Size 1-1/2 in.
Connection FPT
Flow Control Flow Control
Valve Type In-Line / Angle
Parts (187.63 kB)
