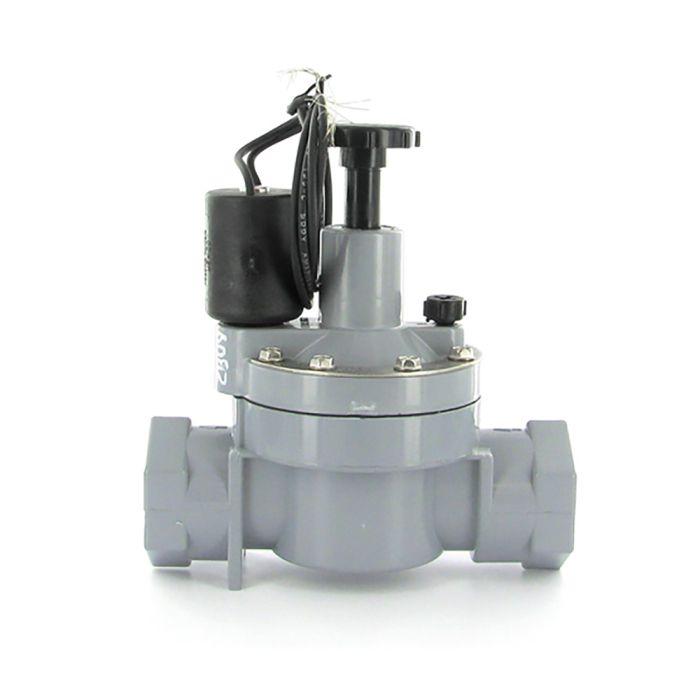

Irritrol 205 In-Line Valve with Flow Control 1 in. FPT | 205TF

In stock
SKU
205TF
Free Shipping on Orders over $149
Sales Price $16.95 Our Price $32.73 You save 48%

Irritrol 205TF 1 in. FPT Valve with Flow Control

  • 1" Irritrol 205TF Valve
  • With Flow Control
  • 1" Female Threaded Inlet/Outlet


Features & Benefits

Irritrol Valves have set the industry standard for reliable performance and innovation for over 40 years. The Irritrol 205 Series 1-inch plastic valve is the irrigation industry's time-tested leader for dependable operation in potable and dirty water applications. With a proven track record of success in a wide range of environments, these debris-tolerant valves are available with flow control as an optional feature. Constructed of heavy-duty, corrosion- and UV-resistant PVC, the 205 Series features a high-flow, low-friction-loss-design that has a pressure range of 10-150 psi and flow range of .25-30 GPM. A manual bleed and a rugged, nylon-reinforced Buna-N diaphragm add to this valve's wide popularity.

Highly reliable and easily recognizable, Irritrol continues to raise its standards to produce premier products which are durable, cost-effective and upon which you can depend.

Added Features

  • Buna-N valve seat seal
  • Manual external bleed
  • Debris-tolerant design
  • Encapsulated injection-molded solenoid with a captive hex plunger
  • Removable, tamper-resistant flow control handle
  • Easily serviced without removal from the system
  • Five-year warranty

Product Details

  • Heavy-duty, corrosion- and UV-resistant PVC construction
  • Proven durability
  • High-flow, low friction loss design
  • More efficient system design and low-flow capability
  • Rugged, nylon-reinforced Buna-N diaphragm
  • Ensures a leak-proof seal
  • Available in female NPT or slip configurations (no male pipe adapter required)
  • Will handle all regional installation variances
  • Optional flow control
  • Allows precise adjustment and manual shutoff

Dimensions

  • H: 5 1⁄8", W: 2 ¾", L: 5"

Operating Specifications

  • Flow range: 0.25-30 GPM
  • Pressure range: 10-150 psi

Electrical Specifications

  • Solenoid: 24 V ac
  • Inrush volt-amp: 24 V ac-9.6 VA
  • Inrush current: .4 amp
  • Holding volt-amp: 24 V ac-4.8 VA
  • Holding current: .2 amp

Models

  • 205S 1" slip connection
  • 205SF 1" slip connection with flow control
  • 205T 1" NPT threaded connection
  • 205TF 1" NPT threaded connection with flow control205SF 1" slip connection with flow control
  • 205T 1" NPT threaded connection
  • 205TF 1" NPT threaded connection with flow control
Irritrol 205 In-Line Valve with Flow Control

Optional Accessories

  • A: DC Latching Solenoid (DCL)
  • B: R205KIT
  • C: R205TFKIT

Pressure Loss Data
ModelSize.252510152030
205 Sries1"5.403.823.002.201.903.105.10

Related Articles & Videos

Articles

Videos

Brand:
Irritrol
Size:
1 in.
Series:
205
Valve Type:
In-Line
Solenoid:
Yes
Type:
Valve
Body Material:
Heavy-Duty PVC
Application:
Residential
Connection:
FPT
Flow Control:
Flow Control
