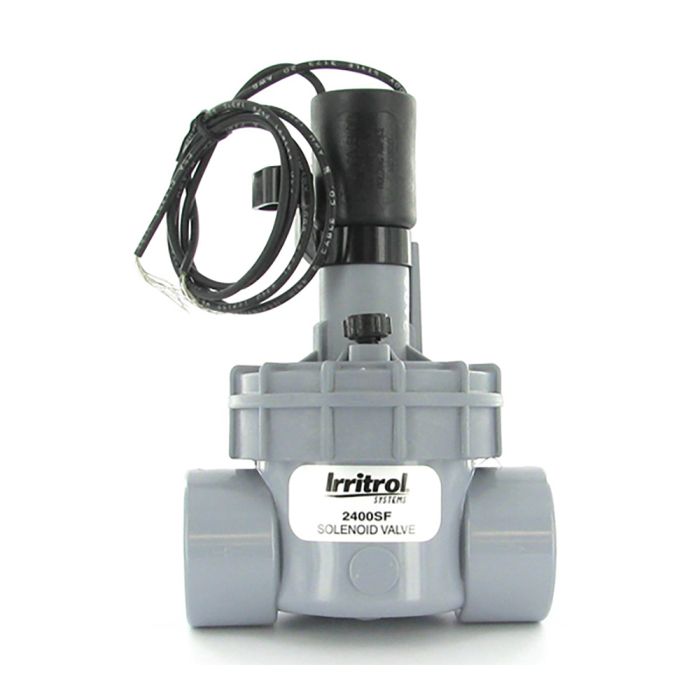

Irritrol 2400F In-Line Valve with Flow Control 1 in. Slip | 2400SF

• Size: 1 in.
• Connection: Slip
• Valve Type: In-Line

Features & Benefits

The Irritrol 2400 Series globe and 2600 Series angle valves are popular with users because of the convenience of their threaded bonnets, the reliability of their double-beaded diaphragm and the durability of their heavy-duty, corrosion and UV-resistant PVC construction.

Fast and easy to install and service, these 1-inch residential plastic valves offer an encapsulated solenoid, internal/external bleed, an optional flow control feature, and are available in multiple configurations.

• Threaded bonnet design Allows easy servicing without removal from the system
• Rugged, double-beaded SANTOPRENE diaphragm Ensures a leak-proof seal
• Internal and external bleed (flush mode) Allows for manual operation
• Full stainless-steel metering system Allows for consistent valve operation
• Heavy-duty, corrosion and UV-resistant PVC, glass-filled polypropylene and stainless steel construction Durable, long-term performance
• Available in multiple configurations female NPT, slip, male x male and male x barb Will handle all regional installation variances (2600 available with NPT threads only)

Added Features

• Buna-N valve seat seal
• Floating bleed tube allows thermal expansion without affecting performance
• Encapsulated injection-molded solenoid with a captive hex plunger
• Five-year warranty

Product Details

Operations Specifications

• Flow range: .25-30 GPM
• Pressure range: 10-150 psi

Electical Specifications

• Solenoid: 24 V ac
• Inrush volt-amp: 24 V ac-9.6 VA
• Inrush current: .4 amp
• Holding volt-amp: 24 V ac-4.8 VA
• Holding current: .2 amp
