Irritrol 2500F In-Line Valve with Flow Control 1 in. FPT | 2500TF

In stock
SKU
2500TF
Free Shipping on Orders over $149
Sales Price $20.95 Our Price $33.41 You save 37%
Case of 20
$20.53 / each

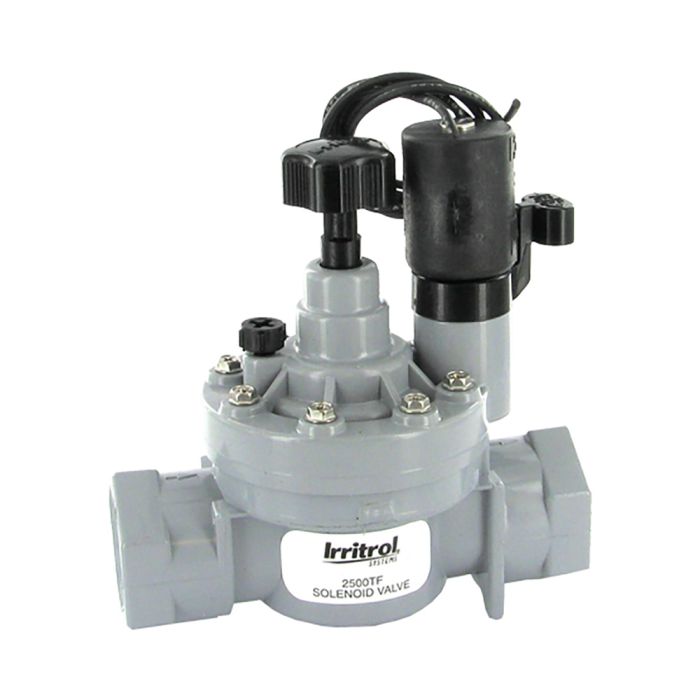

Irritrol 2500F In-Line Valve with Flow Control 1 in. FPT

  • Size: 1 in.
  • Valve Type: In-Line
  • Connection: Female Pipe Thread

Features & Benefits

The Irritrol 2500 Series is a classic example of making a great valve even better. Irritrol has taken its proven 205 Series of valves to the next level by adding a full menu of features including a patented floating metering system for consistent performance in dirty water applications and a rugged, double-beaded diaphragm for long-term performance with no leakage. The 2500's manual internal bleed enables the valve to be opened without filling the valve box with water. And servicing is made easy and efficient with captured screws.

  • Patented floating metering system: Allows this valve to easily handle dirty water
  • High-flow, low friction loss design combined with low-flow capability Can handle a wide range of applications
  • Rugged, double-beaded SANTOPRENE diaphragm: Ensures a leak-proof seal
  • Internal and external bleed (flush mode): Allows for manual operation
  • Full stainless-steel metering system:Allows for consistent valve operation
  • Heavy-duty, corrosion and UV-resistant PVC and stainless steel construction: Proven durability
  • Available in female NPT or slip configurations (no male pipe adapter required): Will handle all regional installation variances
  • Self-aligning bonnet: Permits fast and easy servicing without removal from the system
  • Buna-N valve seat seal
  • Floating bleed tube allows thermal expansion without affecting performance
  • Encapsulated injection-molded solenoid with a captive hex plunger
  • Five-year warranty

Product Details

Operations Specifications

  • Flow range: 0.25-30 GPM
  • Pressure range: 10-150 psi

Electical Specifications

  • Solenoid: 24 V ac
  • Inrush volt-amp: 24 V ac-9.6 VA
  • Inrush current: .4 amp
  • Holding volt-amp: 24 V ac-4.8 VA
  • Holding current: .2 amp

Optional Accessories

  • Recycled-water solenoid kit (RW60-KIT); purple solenoid with purple warning tag
  • DC latching solenoid (DCL)
  • Note: Maximum pressure for a valve that utilizes latching solenoid is 120 psi.
  • Optional accessories are field-installable.
More Information
Brand Irritrol
Type Valve
Body Material Heavy-Duty PVC
Application Residential
Solenoid Yes
Warranty 5 Years
Size 1 in.
Connection FPT
Flow Control Flow Control
Valve Type In-Line
Specifications (269.50 kB)
