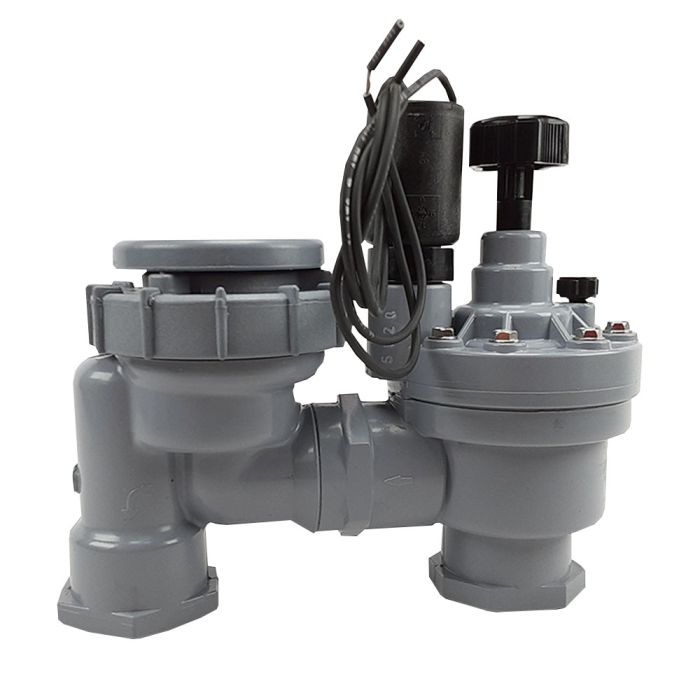

Irritrol 2700 Anti-Siphon Valve with Flow Control 1 in. FPT | 2713APR

Features & Benefits

• Rugged, double-beaded SANTOPRENE? diaphragm Ensures a leak-proof seal
• Internal and external bleed (flush mode) Allows for manual operation
• Full stainless-steel metering system (DPR models) Consistent valve operation
• Patented ?floating metering system? (APR models) Consistent valve operation
• Heavy-duty, corrosion- and UV-resistant PVC, glass-filled polypropylene (DPR MODELS ONLY) and stainless steel construction Durable, long-term performance
• Self-aligning bonnet with captured hex/Phillips screws Permits fast and easy servicing without removal from the system (APR models)
• Threaded bonnet design Allows easy servicing without removal from the system (DPR models)
• Patented, tamper-resistant flow-control mechanism Allows for precise water flow (DPR models)

Added Features

• Buna-N valve seat seal
• Flow control for precise adjustment and manual shutoff
• Gravity-type anti-siphon poppet
• Encapsulated injection-molded solenoid with a captive hex plunger
• Removable, ergonomic, tamper-resistant flow-control handle (APR models)
• Electric H-body with atmospheric vacuum breaker
• Five-year warranty

Operations Specifications

• Flow range: .25-30 GPM
• Pressure range: 10-150 ps

Electical Specifications

• Solenoid: 24 V ac
• Inrush volt-amp: 24 V ac-9.6 VA
• Inrush current: .4 amp
• Holding volt-amp: 24 V ac-4.8 VA
• Holding current: .2 amp
• Meets listing standards of ASSE, IAPMO and CSA
