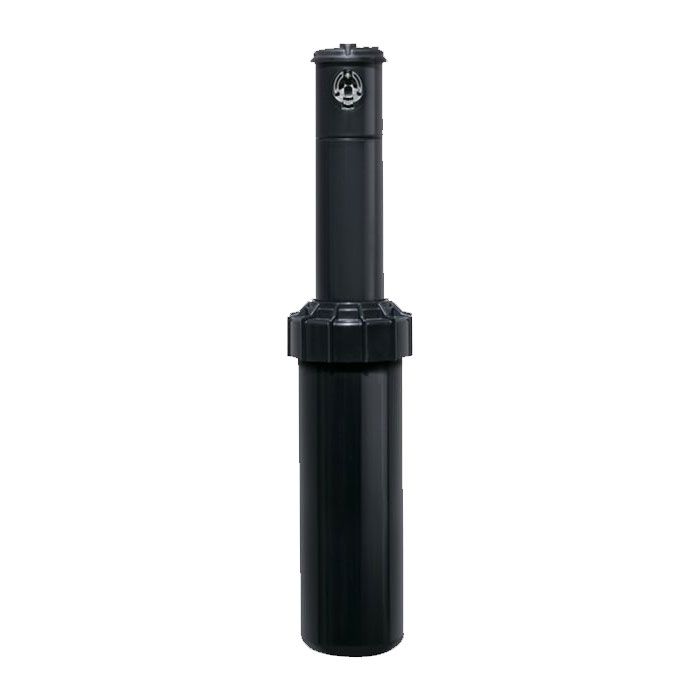

Irritrol Rotor 5 in. | 550R

The new Irritrol 550R rotor delivers basic simplicity and dependable action all in one rotor. With its proven gear-driven design, 50 ft. of watering radius and a full 5 in. pop-up, this rotor just gets more done. Installation is made simple with Irritrol's familiar top arc adjustment and all-in-one full- and part-circle operation from 40 to 360 degrees. And, with the ability to quick check the arc with positive left and right stops, set-up time is further reduced. The 550R comes with a wide selection of nozzles (8 standard and 4 low angle nozzles) making it the ideal rotor for your everyday installations.

Features & Benefits

FAMILIAR TOP ADJUSTMENT, WET OR DRY

• For Fast Convenient Installation

REVERSING FULL- AND PART-CIRCLE OPERATION

• Allows You to Adjust the Rotor from 40 to 360 Degrees

NON-FLUSHING WIPER SEAL

• Reduces Leaks Caused by Debris Trapped Under Seal

ALL ADJUSTMENTS MADE WITH A STANDARD SCREWDRIVER

• No Special Tools Required

STANDARD RUBBER COVER

• Provides Added Protection Against Debris and Keeps Playing Areas Safe

WIDE SELECTION OF NOZZLES

• 8 Standard and 4 Low Angle Nozzles Included with Each Rotor to Handle
  A Wide Range of Applications

POSITIVE LEFT AND RIGHT STOPS (FIXED LEFT STOP)

• Reduces Set-Up Time by Allowing You to Quick Check the Arc

FULL 5 IN. POP-UP

• Fits in Competitive Footprint Without Extra Digging

SLIP CLUTCH

• Protects Against Tampering and Vandalism

Product Details

• Precipitation rate: .20 to .99 inches per hour
• Radius: 25 to 50 ft.
• Recommended Operating Pressure: 45 PSI
• Flow Range: .74 to 9.70 gpm
• 3/4 in. (20/27) NPT female bottom threaded inlet
• Part-Circle Adjustment 40 - 360 degrees
• Pop-up height: 5 in.
• Nozzle Trajectory:
  • Standard: 25 Degrees
  • Low angle: 12 Degrees
