King Innovation Medium Wire Connectors (2 ct.) | 20230

In stock
SKU
20230
Free Shipping on Orders over $149
Sales Price $2.95 Our Price $5.29 You save 44%

King Innovation Medium
Wire Connectors

UL Listed and with a 600V rated capability, this waterproof /corrosion-proof connector stands up to UV treatments and is impact-resistant, perfect for low voltage lighting or two-wire decoded system applications.

Features Benefits

  • UL Listed and 600V Rated
  • Waterproof and corrosion proof
  • Patented snap fit lid provides strain relief
  • UV and impact resistant
  • Excellent for above ground and direct bury applications
  • Pre-filled with silicone that never hardens

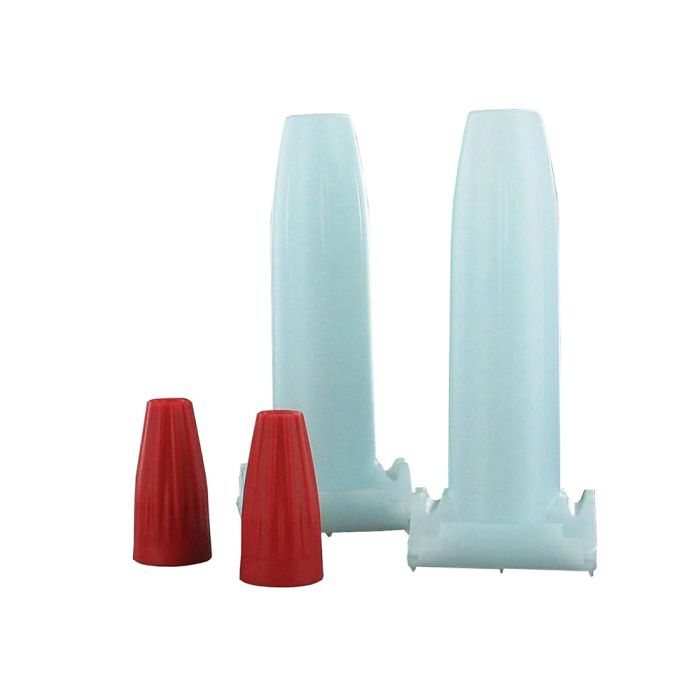

  • Two part system includes Gorilla Nuts Red/Yellow Cushion Grip Wire Connector and silicone filled tube
  • Perfect for low voltage lighting or two-wire decoder system applications

Product Specifications & Measurements

  • Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
  • Connector Size: 3 11/16" x 1 1/2" x 1 3/16"
  • Wire Type: Copper/Copper
  • Wire Range: Min #22/Max #8
  • Temperature Rating: -105°C (221° F)
  • Silicone Sealant Temperature: -45°F to 400°F
  • UL Designation:GT2

Measurements

  • A - 3.67"
  • B - 1.18"
  • C - 1.50"

Installation Instructions

IMPORTANT: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes.

  1. Strip wires 5/8" (15.9 mm).
  2. Pre-twisting unnecessary. Hold stripped wires together with ends of insulation even. Lead stranded wires slightly.
  3. Align any frayed strands or conductors.
  4. Firmly push wires into twist-on connector and screw connector clockwise onto wire until tight.
  5. Insert the splice to the bottom of the sealant filled tube.
  6. Position wires into wire channels.
  7. Wipe any sealant around opening and conductors.
  8. Close lid ensuring latch is secured.

Note: If having difficulty getting the twiston connector down into the tube when using small gauge wires, use a thin, nonconductive object to push the connector to the bottom of the tube. Upon removal of the object, wipe sealant in and around opening created by the non-conductive object.

Brand:
King Innovation
Wire Range:
Min #22/Max #8
Temperature Rating:
221°F
Temperature Range:
-45 - 400°F
Type:
Direct Bury Wire Connectors
Max Voltage:
600V Buliding, 1000V Signs or Luminaries
Specifications (303.14 kB)
