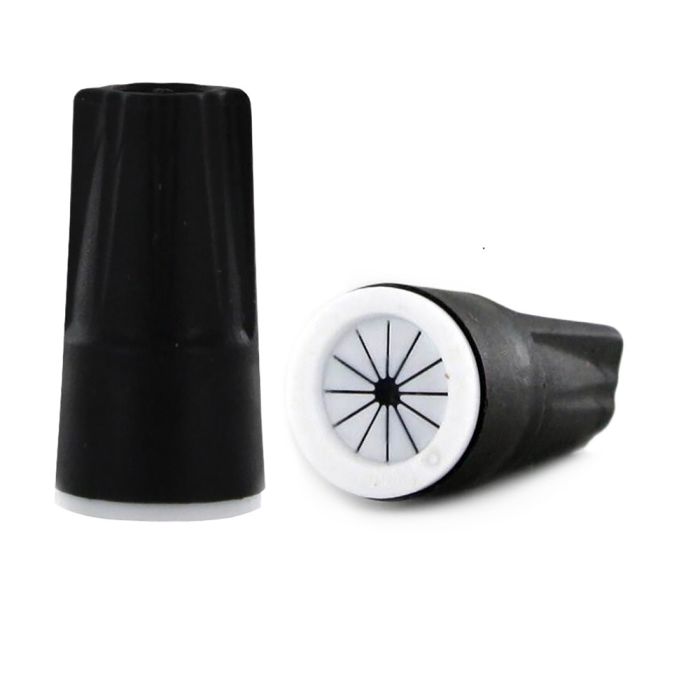

King Innovation Waterproof Small Wire Connectors (25 ct.) | 61135-25CT

• Pack of 25 per order
• Type: Waterproof Connectors
• Max Voltage: 600V Building Wire, 1000V Signs or Luminaires

Features & Benefits

Rated #1 in the industry, this waterproof / corrosion-proof connector saves you money and time with its patented One-step installation. For use in direct bury applications, this connector needs no pre-twisting when applying in use and each connection comes pre-filled with dielectric silicone sealant ensuring never to harden.

• UL Listed 600V for dry, wet or above/below grade applications when used in an enclosure
• For use in Direct Bury applications when operating at 30V or less
• Impact resistant
• #1 in the industry
• Waterproof and corrosion proof
• One-step® installation saves time and money
• No pre-twisting required
• Pre-filled with dielectric silicone sealant that never hardens

Product Details

• Max. Voltage: 600V max. building wire (1000V max. signs or luminaires)
• Connector Size: 27/32" x 7/16"
• Wire Type: Copper/Copper
• Wire Range: Min #22/Max #12
• Temperature Rating: 105°C (221°F)
• Silicone Sealant: -45°F to 400°F
• UL Designation: SWP*

Installation Instructions

Note: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes.

1. Strip #22 - 18 wires 1/2" (12.7mm) and #16-12 wires 3/8" (9.5mm).
2. Align any frayed strands or conductors.
3. Pre-twisting unnecessary. Place stripped wires together with ends of insulation even.
4. Twist connector onto wires pushing firmly until hand-tight. Do not over torque.
5. Wipe sealant in and around conductors and connector opening while tightening. Do not reuse.

Measurements

• A - 0.85"
• B - 0.44"
• C - 0.31"
