NDS-113P-CR Rectangular Valve Box Cover for Non-Potable Water
NDS STANDARD RECTANGULAR OVERLAPPING COVER ONLY (FOR NON-POTABLE WATER):
The NDS STANDARD SERIES rectangular valve boxes overlapping covers prevent dirt and grass from settling between body and cover. UV inhibitors are added to prevent discoloration and deterioration; such as cracking or blistering.
Injection molded of recycled polyolefin material with a melt index between 10-12.
Coloring and UV stabilizers are added, along with processing lubricants when needed.
The cover seat shall have 16 structural ribs on the underside of the seat, each with a minimum thickness of .250"
Cover measures with an average thickness of .250"

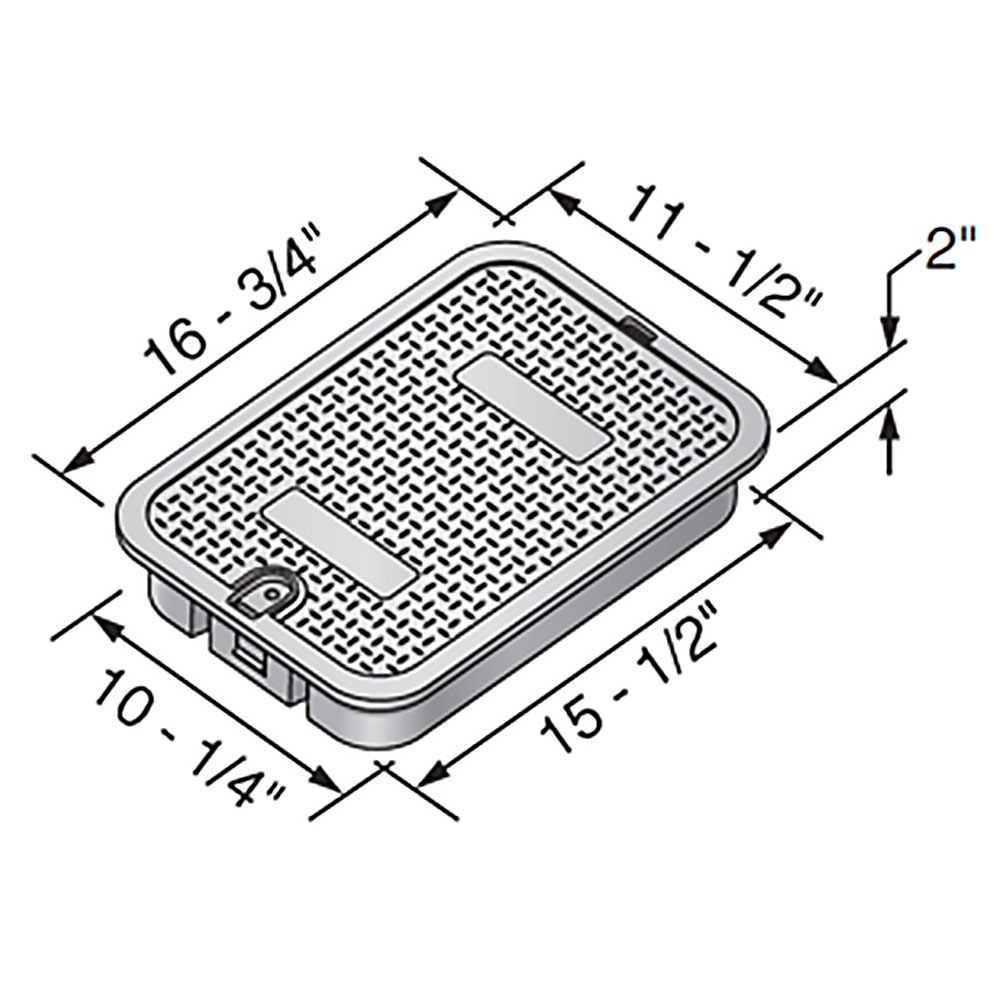

Above diagram is of the COVER ONLY

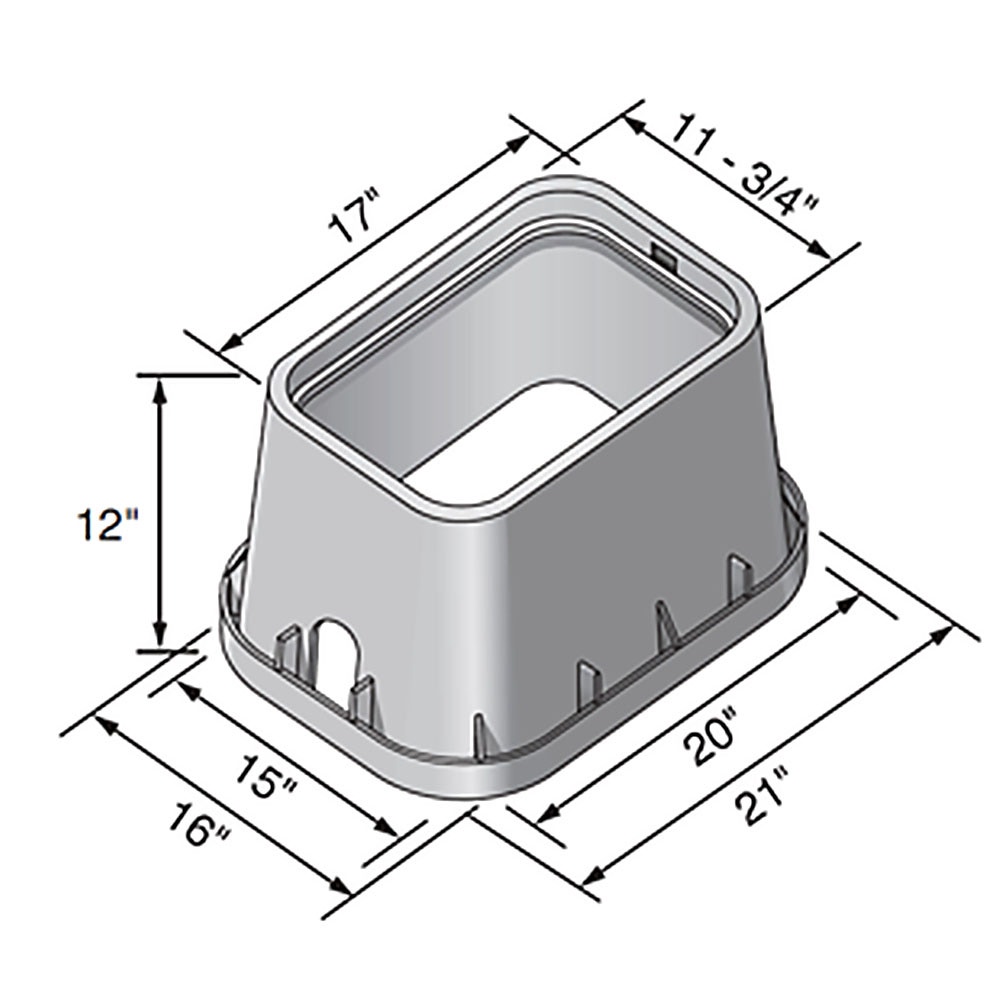

This diagram reflects the VALVE BOX (NDS-113BC) that the COVER fits. Valve BOX is NOT included with the COVER. Use these dimensions to determine if the COVER will properly fit your current valve BOX.
