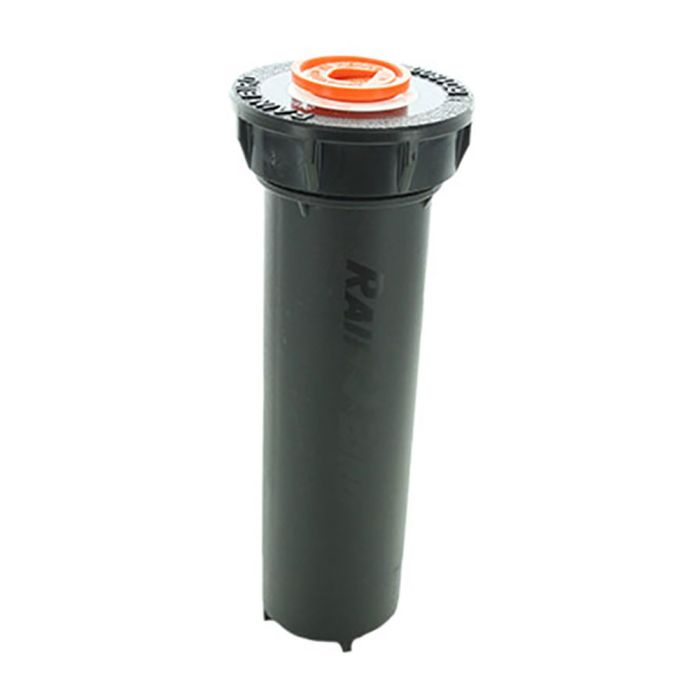

Rain Bird RD1800 45 PSI Pressure Regulated Spray Head with Seal-A-Matic and Flow Shield 4 in. | RD04-SP45F

Free Shipping on Orders over $149
Sales Price $11.25 Our Price $16.95 You save 34%
Quantity of 75
$8.59 / each

RD04-SP45F SAM PRS Series 4-inch Sprinkler Spray

Every landscape has elements that wear on your spray heads over time from sand and grit to high water pressure and harmful chemicals in reclaimed water. RD1800? was designed with these incredibly harsh conditions in mind. As the next evolution in spray heads from Rain Bird?the industry leader in sprays RD1800 was built with exclusive materials and features that stand up to the challenges of any setting (see Features below for more information about what sets the RD1800 apart).

Potable water models of the RD1800 feature a white seal, and offer our highest level of protection against the universal challenges that spray heads endure. Non-potable models add an extra level of defense against the chlorine and chemicals found in recycled water, and feature a purple seal with the international Do Not Drink symbol and warnings in English and Spanish.

Features / Benefits

  • Co-molded, pressure activated, Triple-Blade Wiper Seal assures positive seal without excess flow-by which enables more heads to be installed on the same valve. A base seal provides a positive seal during operation. Precision controlled flush at pop-down clears debris from the unit, ensuring positive stem retraction in all soil types.
  • Debris pockets in the base of the spray body collect debris and prevent re-circulation in the body during operation, reducing wear.
  • Parts developed to be resistant to corrosion in treated recycled water containing chlorine and other chemicals.
  • Strong stainless steel spring provides reliable stem retraction and withstands corrosion.
  • Reinforced ratchet mechanism on all models allows easy nozzle pattern alignment without tools, withstands chemicals in recycled water and prevents pattern misalignment over time.
  • All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.

Operating Range

  • Spacing: 3 to 20 feet (0,9 to 6,1 m).
  • Pressure: 15 to 70 psi (1 to 5 bar).
  • Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.1 gpm (0.02 m3/h; 0.006 l/s) otherwise.
  • Installation: side or bottom inlet.
  • Side inlet installation not recommended in freezing climates.
  • 1804: 6" (15 cm) body height; 4" pop-up height (10 cm)

Manuals and Literature

Specifications Brochure
More Information
Brand Rain Bird
Type Spray Head
Nozzle Connection Female Nozzles
Side Inlet No Side Inlet
Inlet Size 1/2 in.
Spray Body Height (in.) 6 in.
Check Valve SAM
Spray Head Spring Stainless Steel
Nozzle Installed No Nozzle (Flush Plug Only)
Spray Head Wiper Seal Triple Bladed
Non-Potable Potable
Pressure Regulation P45
Application Commercial
Warranty 5 Years
Pop-Up Height 4 in.
Advanced Features Check Valve, Potable, PRS45
Specifications (297.49 kB)
