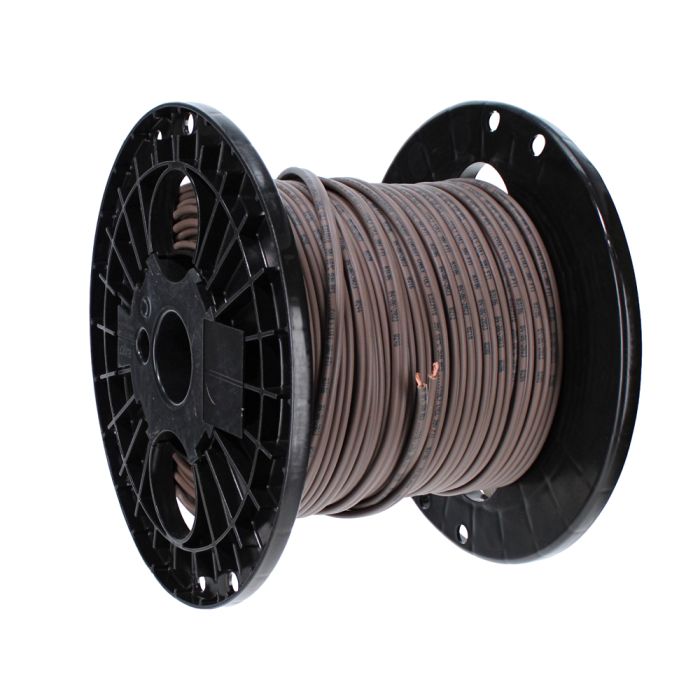

10 AWG Low Voltage Lighting Wire 250 ft. | 10-2-LIGHTING-WIRE-BROWN

• Optimal for landscape light
• Great for residential or commercial use
• Suitable for outdoor environment

Features & Benefits

Suitable for outdoor environment, this 10 gauge, 2 conductors sprinkler wire is optimal for landscape light. With a coverage of 250 feet, this wire is great for residential or commercial use.

• Application: Low Voltage Underground Lighting Applications
• Approvals: UL Misc. Wire - Low Energy Circuit Cable

Product Details

• Gauge: 10 AWG
• Conductors: 2
• Direct Burial: Yes
• Coverage: Covers 250 ft.
• Stranding: 104/30
• Insulation/Jacket Thickness: 0.047" Nom.
• Overall Dimensions: 0.205" x 0.405" Nom.

Materials

• Jacket Color: Black
• Jacketed: Yes
• Jacket Material: PVC
• Max Amps:

Construction

• This cable consists of two bare copper conductors with integral insulation and jacket in an SPT style construction

Approvals

• UL Misc. Wire - Low Energy Circuit Cable

Electrical Properties:

• Temperature Rating: -20°C to 60°C
• Operating Voltage: 150 V Max.
• DC Resistance per Conductor @ 20°C: 0.99 Ohms/1M' Nom.
