12 AWG Low Voltage Lighting Wire 250 ft. | 12-2-LIGHTING-WIRE-BROWN

• Gauge: 12
• Conductors: 2
• Length: 250 ft
• Color: Black

Note: This product (12-2-LIGHTING-WIRE) is sold as a 250 foot roll.

• To order this product by the foot please see 12-2-LIGHTING-WIRE-FT

Product Details

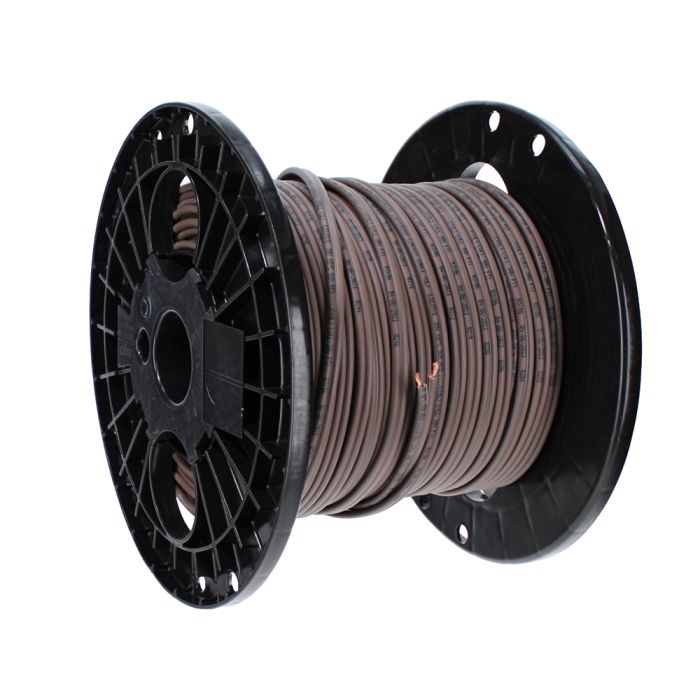

• 250 feet of 12 AWG 2/C Stranded Underground Low Energy Circuit Lighting Cable.
• Application: Low Voltage Underground Lighting Applications

Construction: This cable consists of two bare copper conductors with integral insulation and jacket in an SPT style construction.

Approvals: UL Misc. Wire - Low Energy Circuit Cable

Construction Parameters:

• Conductor: 12 AWG Bare Copper
• Stranding: 104/30
• Insulation/Jacket Material: PVC
• Insulation/Jacket Thickness: 0.047" Nom.
• Overall Dimensions: 0.186" x 0.417" Nom.

Electrical Properties

• Temperature Rating: -20 degrees C to 60 degrees C
• Operating Voltage: 150 V Max.
• DC Resistance per Conductor @ 20 degrees C: 1.59 Ohms/1M' Nom.
