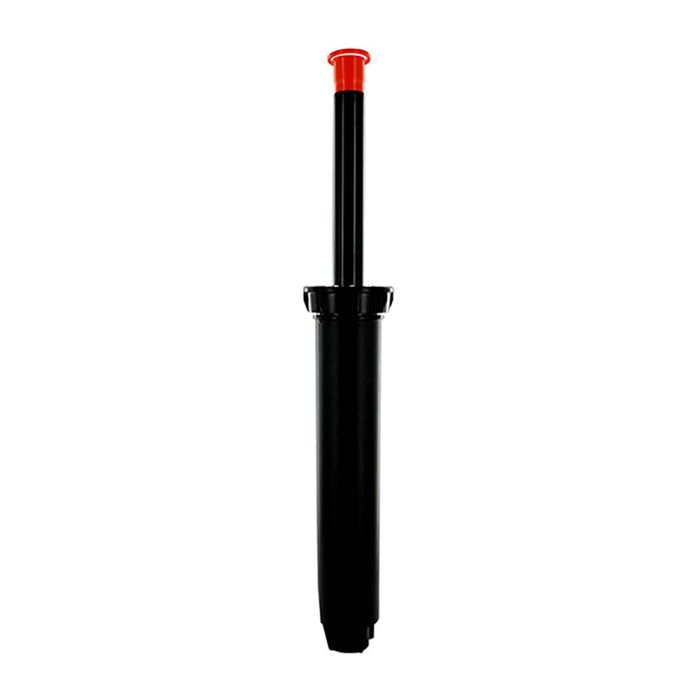

Rain Bird 1800 30 PSI Pressure Regulated Spray Head with Check Valve 6 in. | 1806-SAM-PRS

• No Nozzle (Flush Plug Only)
• Inlet Size: 1/2 in.
• Pop-Up Height: 6 in.

Features & Benefits

Installed in parks and backyards across the globe, Rain Bird's 1800 Series is the #1 commercial-grade irrigation spray head brand in the world.

Chosen for its reliability, heavy-duty materials and versatility, the 1800 Series has first-rate quality built in for reliable operation and long life. Their superior components and features make them the spray heads of choice for a wide variety of applications.

Also available with Seal-A-Matic (SAM) in-stem check valve option and patented PRS in-stem pressure regulator option.

Product Details

• Spacing: 3 to 24 feet (0.9 to 7.3m)
  • 3 to 18 feet with standard Rain Bird Spray Head Nozzles (MPR, VAN, U-Series). 13 to 24 feet with Rain Bird Rotary Nozzles
• Pressure: 15 to 70 psi (1.0 to 4.8 bar).
• Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m otherwise.
• Installation: side or bottom inlet.
• Side inlet installation not recommended in freezing climates.
• 1806 and 1812-SAM and SAM-PRS units do not have a side inlet.

Dimensions

• 1/2" (15/21) NPT female threaded inlets
• Body height:
  • 1802: 4" (10,2 cm) body height; 2" pop-up height (5.1 cm)
  • 1804: 6" (15,2 cm) body height; 4" pop-up height (10.2 cm)
  • 1806: 9 3/8" (23,8 cm) body height; 6" pop-up height (15.2 cm)
  • 1812: 16" (40,6 cm) body height; 12" pop-up height (30.5 cm)
• Exposed surface diameter: 2 1/4" (5.7 cm)
