Rain Bird 5000 PLUS Rotor 4 in. | 5004-PLPC

In stock
SKU
5004-PLPC
Free Shipping on Orders over $149
Sales Price $9.95 Our Price $21.95 You save 55%
Case of 20
$9.75 / each
Pallet of 800
$9.55 / each

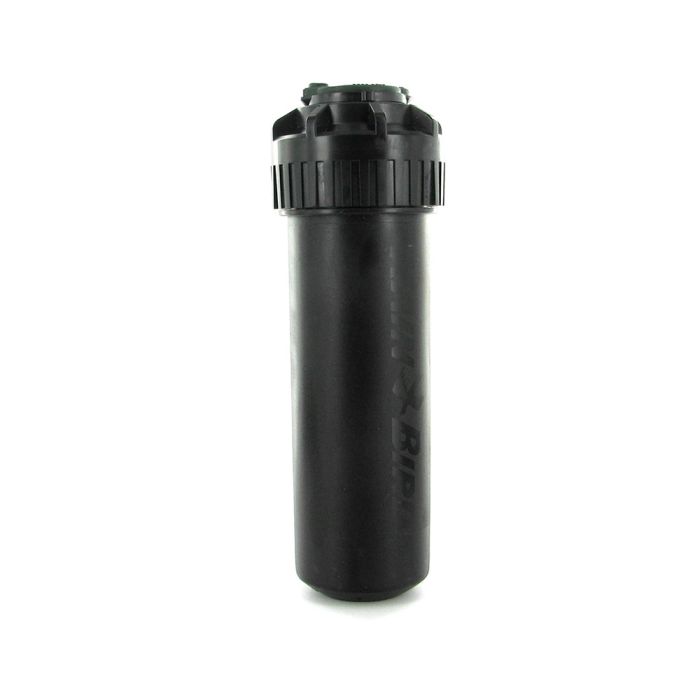

Rain Bird 5004-PLPC 4 in. Pop-Up Partial-Circle Adjustable Arc Rotor

  • Series: 5000 PL
  • Pop-Up Height: 4 inches
  • Rotor Tool Sold Separately

Features & Benefits

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet. The 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout. The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money. Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

  • Faster maintenance with a new self-cleaning arc adjustment screw
  • Standard rubber cover for extra protection. 5000 Plus/5000 Plus PRS feature a green cover while the 5000 features a black cover
  • Heavy-duty cover assembly for extra durability in residential or commercial applications
  • Rain Curtain Nozzles
  • The 5000 Plus features a Flow Shut-Off device to stop the flow of water to a particular head while the system is still in operation.
  • Slip clutch mechanism for quick adjustment on installation
  • Heavy-duty retract spring assures positive pop-down
  • Tree of nozzles including four low angle (Angle of Trajectory 10) and eight standard angle Rain Curtain Nozzles (Angle of Trajectory 25) provides 25 to 50 (7,6 to 15,2 m) distance of throw
  • ward-winning MPR nozzle set simplifies design and installation by providing matched precipitation from 25to 35 (7,6 to 10,7 m)
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • Five-year trade warranty
  • 40 - 360 arc rotation and reversing full circle rotation in one
  • Radius adjustment screw allows up to 25% radius reduction without changing nozzles
  • True 4 (10 cm), 6 (15,2 cm) and 12 (30,5 cm) pop-up (measured from the cover to the nozzle)
  • Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
  • Reinforced flow path for additional side load strength
  • Additional O-rings and seals for extra protection in gritty water

Dimensions

  • Pop-up height: Shrub: 4" (10 cm); 6" (15 cm); 12" (30 cm)
  • Overall body height: Shrub: 7 3/4" (19,7 cm), 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
  • Exposed surface diameter: 1 5/8" (4,1 cm) *Note: Pop-up height measured from cover to the nozzle. Overall body height is measured popped down.

Operating Range

  • Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
  • Radius: 25 to 50 feet (7,6 to 15,2 m)
  • Radius may be reduced up to 25% with radius reduction screw
  • Pressure: 25-65 psi (1,7 to 4,5 bar)
  • Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)

Product Details

  • 3/4 (20/27) NPT female bottom threaded inlet
  • PLPC Models: Reversing full and part circle adjustment 40 360
  • PLFC Models: Full circle only adjustment 360
More Information
Brand Rain Bird
Type Rotor
Application Residential And Commercial
Inlet Size 3/4
Body Height 7-3/8
Pressure Range (PSI) 25-65
Warranty 5 Years
Pop-Up Height 4 in.
Check Valve No Check Valve
Flow Control Flow Shut-off
Riser Material Plastic
Spray Pattern Part Circle Adjustable (40 - 360)
Advance Features Flow Shut-Off
