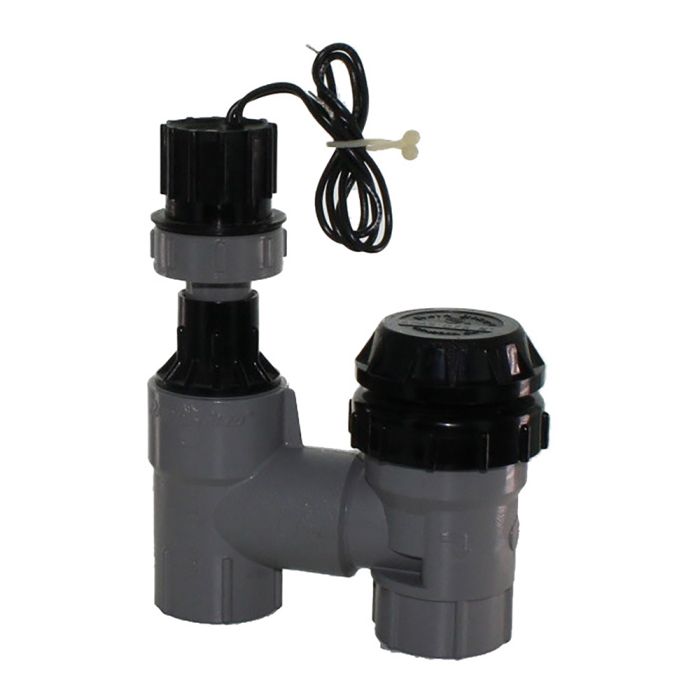

Rain Bird Anti-Siphon Valve with Flow Control 1 in. FPT | APAS-100

Out of stock
SKU
APAS-100
Free Shipping on Orders over $149
Sales Price $71.85 Our Price $103.82 You save 31%
Case of 10
$70.41 / each

Rain Bird APAS Anti-Siphon Sprinkler Valve

  • Vintage Stock
  • 1" inlet size pipe connection
  • For 14 GPM or more
  • Electric, works with any standard 24-volt timer

Features & Benefits

Vintage Stock

Rain Bird APAS were used commonly in the years leading up to 2008. They were among the most commonly bought and installed valves in the United States. Production of the APAS-100 was discontinued in 2008 and no replacement part was ever created. Sprinkler Warehouse has scoured the country to source any remaining new product that is still available. The product being offered here is NEW and unused.

  • Commonly used in residential irrigation
  • Anti-Siphon vacuum breaker prevents backflow
  • Meets most codes for city water hookup
  • Safe, Low Voltage
  • Works with any standard sprinkler timer
  • Flow control adjusts flow of water to sprinklers

Automatic Anti-Siphon Sprinkler Valve for Backflow Prevention. The APAS models meet or exceed most building code requirements for connecting a sprinkler system to a city water supply. These valves prevent the possibility of back-siphoning of water from sprinkler lines into the drinking water. The anti-siphon valves must be installed at least 6 inches above the highest sprinkler in the circuit to work properly.

Do not use this anti-siphon valve as a main line backflow device, nor as a master valve. It is not designed nor approved to be under constant water pressure on both sides of the valve. Do not install any other valves downstream. If installed incorrectly under constant pressure on both sides of the valves, it is possible that the valve will fail or burst.

Product Details

  • Electric Sprinkler Valve with Backflow Preventer built-in
  • The APAS sprinkler Valve is designed for use with all standard sprinkler timers
  • 24 volt, 60 cycle, AC
  • Valve size should be selected to match the pipe size of the INLET.
  • Easy to Install!
  • For new systems or for replacement
  • Anti-siphon vacuum breaker prevents backflow
  • Meets most codes for city water hookup
  • Safe, Low Voltage
  • Works automatically or manually
  • Easy to dissemble for cleaning
  • Arrows molded in valve body show the direction of water flow
  • Rustproof Solenoid
  • Internal filter screen keeps dirt out of piston
  • Spray-free internal bleed
  • On-off manual and flow adjustment control
  • Easy actuator removal for servicing
APAS-075
  • Flow control regulates flow of water
  • Manual control if power fails
  • Vacuum breaker preventers backflow contamination
  • Safe, low voltage 24 volt
  • Easy to disassemble for cleaning
  • Rustproof solenoid; reliable and non-corrosive
APAS-075

Recommended Repair Parts

Griswold Automatic Brass Anti-siphon Valve Diaphragm Kit 3/4" - 1" (53066)

  • Brass Anti-Siphon Valve Repair Kit
  • Fits Sizes 3/4" & 1"
  • Use with Orbit, Champion, Superior, Rain Bird, and HydroRain

Rain Bird DV, DVF, ASVF, JTV, & JTVF Replacement Solenoid (208588-01)

  • Rain Bird Solenoid
  • Kit includes: solenoid, solenoid o-ring, solenoid filter
  • Compatible with all DV, DVF, ASVF, JTV valves

Related Articles & Videos

Articles

Videos

More Information
Brand Rain Bird
Type Valve
Body Material Plastic
Application Residential
Solenoid Yes
Size 1 in.
Connection FPT
Flow Control Flow Control
Valve Type Anti-Siphon
Manual (6.22 MB)
