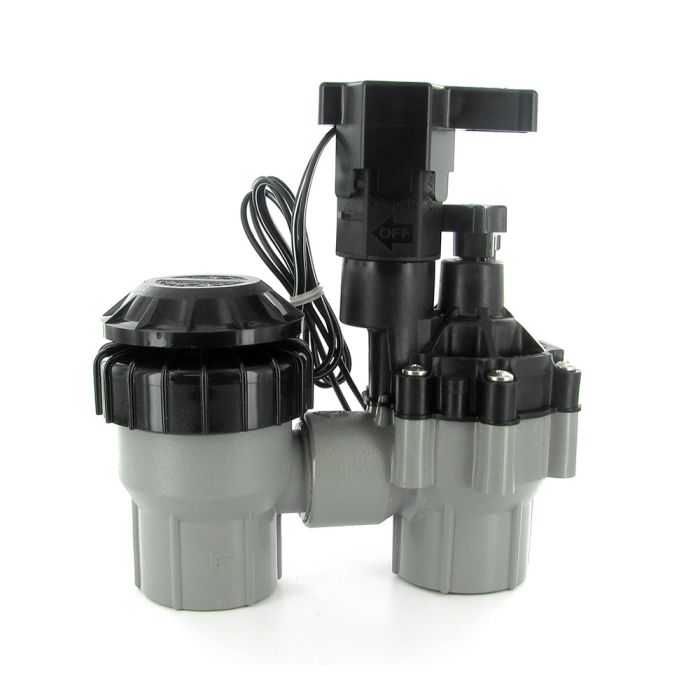

Rain Bird ASVF Anti-Siphon Valve with Flow Control 1 in. FPT | 100-ASVF

In stock
SKU
100-ASVF
Free Shipping on Orders over $149
Sales Price $18.95 Our Price $44.36 You save 57%
Case of 10
$18.57 / each

Rain Bird ASVF 1 in. FNPT Anti-Siphon Valve with Flow Control

  • 1" Rain Bird 100-ASVF Anti-Siphon Valve
  • With Flow Control
  • 1" Female Threaded Inlet/ Outlet

Features & Benefits

Economical irrigation anti-siphon valve with built-in atmospheric vacuum breaker for residential and light commercial applications. All Rain Bird valves work with any standard sprinkler timer.

  • Combination reliable DVF valve and atmospheric backflow preventer in one unit.
  • Incorporates all features of DV/DVF Series valves.
  • I.A.P.M.O. and A.S.S.E listing approved.
  • City of Los Angeles listing approved.
  • Five-year trade warranty.

Additional Features

  • Anti-Siphon Valves are engineered to take on the toughest application challenges, even under the worst conditions, so be confident in the knowledge these valves will stand up to the diverse watering needs of your landscape.
  • Anti-Siphon Valves feature heavy-duty construction to protect against temperature extremes and high water pressure situations, ensuring hassle-free performance year after year.

Product Details

  • Pressure: 15 to 150 psi (1,0 to 10,4 bar)
  • 075-ASVF Flow: 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,68 m3/h; 0,19 l/s) or any Xerigation products application, use a 200 mesh filter installed upstream.
  • 100-ASVF Flow: 0.2 to 40 GPM (0,05 to 9,08 m3/h; 0,01 to 2,52 l/s). For flows below 3 GPM (0,68 m3/h; 0,19 l/s) or any Xerigation products application, use a 200 mesh filter installed upstream.
  • Ambient air temperature: Up to 125°F (52°C)
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
  • 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
  • Solenoid coil resistance: 38 Ohms
  • Anti-siphon must be installed at least 6" (15,2 cm) above the highest point of water in the pipe and sprinklers it serves.
  • No valve can be located downstream of the anti-siphon valve.
  • UPC Sec. 1003 (2)
  • For use in cold water only, less than 110°F (43°C)
  • Anti-siphon valves must not be operated continuously for more than twelve (12) hours.
  • Consult local codes.

Dimensions

  • Height: 6 1/4" (15,8 cm)
  • Length: 6 1/10" (15,5 cm)
  • Width: 3 1/5" (8,1 cm)
ASVF VALVE PRESSUSE LOSS (PSI)
FLOW (GPM) 075-ASVF PSI 100-ASVF PSI
1 2.8 2.9
3 3.4 3.1
5 3.8 3.3
10 4.6 3.9
20 6.5 5.0
30 - 7.8
40 - 13.4



ASVF VALVE PRESSUSE LOSS (BAR)
FLOW M3/H L/M 075-ASVF BAR 100-ASVF BAR
0.23 3.8 0.19 0.20
0.6 10 0.23 0.21
1.2 20 0.26 0.23
3.6 60 0.39 0.31
4.5 75 0.45 0.34
6.0 100 - 0.47
9.0 150 - 0.91



Related Articles & Videos

Articles

Videos

Brand:
Rain Bird
Conserva Catalog:
Yes
Type:
Valve
Body Material:
Heavy-Duty Plastic Body
Application:
Residential and Commercial
Solenoid:
Yes
Warranty:
Catalog, Search
Size:
1 in.
Connection:
FPT
Flow Control:
Flow Control
Valve Type:
Anti-Siphon
Specifications (461.43 kB)
Brochure (553.90 kB)
Manual (3.75 MB)
Manual (6.25 MB)
