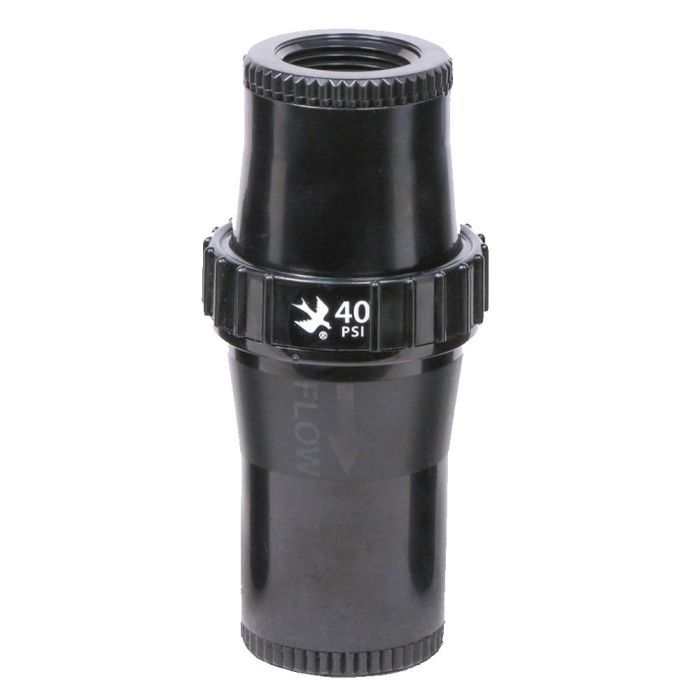

Rain Bird H40X 40 PSI Inline High Pressure Regulator 1 in. FPT | PSI-H40X-100

• Size: 1 in.
• Flow Rate: 2 - 10 GPM
• Connection: Female Pipe Thread

Features & Benefits

Flexibility

Its high flow range (0.5 GPM to 70 GPM) capacity allows usage in a wide range of applications, making it ideal for drip or spray applications. It can be installed above or below grade.

• 1” Pressure Regulators flow range: 0.5-35 GPM (1.9 to 132.5 l/min)
• 1½” Pressure Regulator flow range: 15-70 gpm ( 56.8 to 265.0 l/min)

Reliable Performance:

Pre-set outlet pressure regulation at either 40 psi (2.8 bar) or 50 psi (3.4 bar) provides worry-free protection for your irrigation installations.

Durability:

Tested to meet Rain Bird's high-quality standards. High Strength ABS construction and stainless steel springs provide the durability to withstand any job.

Product Details

Pressure Regulation:

• PSI-H40X-100: 40 psi (2.8 bar)
• PSI-H50X-100: 50 psi (3.4 bar)
• PSI-H40X-150: 40 psi (2.8 bar)

Flow Range:

• PSI-H40X-100 & PSI-H50X-100: 0.5 gpm (1.9 l/min) to 35 gpm (132.5 l/min)
• PSI-H40X-150: 15 gpm (56.8 l/min) to 70 gpm (265.0 l/min)

Inlet/Outlet Size:

• PSI-H40X-100 & PSI-H50X-100 : 1” Female NPT X 1” Female NPT
• PSI-H40X-150: 1½” Female NPT X 1½” Female NPT

Dimensions:

• PSI-H40X-100 & PSI-H50X-100: 5.8” (14.7 cm) Length x 2.7” (6.8 cm) Width
• PSI-H40X-150: 6.3” (16.0 cm) Length x 3.3” (8.4 cm) Width

Operating Range:

• 15 psi (1.0 bar) to 150 psi (10.3 bar)

Operating Water Temperature:

• 33°F up to 110°F (0.5°C to 52°C)

Note: Use Teflon tape as a sealing standard, do not use pipe dope.
