Rain Bird HE-VAN High Efficiency Adjustable Nozzle 15 ft | HE-VAN15

In stock
SKU
HE-VAN15
Free Shipping on Orders over $149
On-Sale $1.25 List Price $2.52
of 25
$1.23 / each
of 250
$1.20 / each

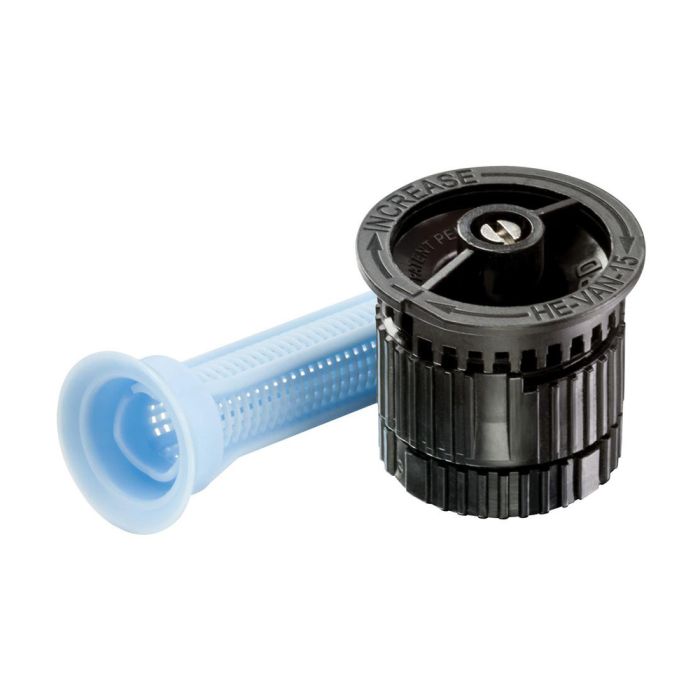

Rain Bird HE-VAN 15 Series 15 Foot Adjustable Nozzle (Variable Arc Spray Nozzle)

  • 15' Arc
  • Adjustable Nozzle 0° to 360°
  • Female threaded to fit male threaded sprays and adapters

Features & Benefits

  • Easy arc adjustment from 0° to 360° with a simple twist of the center collar to increase or decrease arc setting
  • ExactEdge takes the guesswork out of arc adjustment. As you turn the nozzle to the desired arc setting, youll feel it lock into place for a clean, consistent edge every time
  • Patent pending Flow Control Technology provides superior close-in watering and uniform coverage across the entire pattern
  • Thicker streams and large water droplets for greater wind resistance
  • Matched precipitation rates with Rain Bird MPR and U-Series Nozzles.
  • A strong top deflector to minimize nozzle damage due to normal wear and tear.
  • No special tools required.
  • Stainless steel adjustment screw to adjust flow and radius, up to a 25% reduction in radius.
  • Shipped with appropriate filter screens to maintain precise radius adjustment and prevent clogging.
  • Fits on all Rain Bird 1800 Series Spray Heads, UNI-Spray Series Spray Heads and Rain Bird Shrub Adapters.

Product Details

  • Rain Bird HE-VAN Nozzles deliver an average Distribution Uniformity of 70%, more than a 40% improvement over typical variable arc spray nozzles
  • Rain Bird HE-VAN Nozzles deliver a Scheduling Coefficient (measure of how long a zone must be run in order to provide adequate water to the driest spot) â°Â¤ 1.6, which is 35% lower than the typical variable arc spray nozzle.

Operating Range

  • HE-VAN-08: 6 to 8 feet (1.8 to 2.4 m)
  • HE-VAN-10: 8 to 10 feet (2.4 to 3.0 m)
  • HE-VAN-12: 10 to 12 feet (3.0 to 3.7 m)
  • HE-VAN-15: 12 to 15 feet (3.7 to 4.6 m)
HE-VAN15 15 ft Adjustable Nozzle
ARC PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
Rain Bird HE-VAN 15 Series 15 Foot Adjustable Nozzle
15 11 2.62 2.08 2.40
20 12 3.02 2.02 2.33
25 14 3.38 1.66 1.92
30 15 3.70 1.58 1.83
ARC PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
Rain Bird HE-VAN 15 Series 15 Foot Adjustable Nozzle
15 11 1.96 2.08 2.40
20 12 2.27 2.02 2.33
25 14 2.53 1.66 1.92
30 15 2.78 1.58 1.83
ARC PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
Rain Bird HE-VAN 15 Series 15 Foot Adjustable Nozzle
15 11 1.31 2.08 2.40
20 12 1.51 2.02 2.33
25 14 1.69 1.66 1.92
30 15 1.85 1.58 1.83
ARC PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
Rain Bird HE-VAN 15 Series 15 Foot Adjustable Nozzle
15 11 0.65 2.08 2.40
20 12 0.76 2.02 2.33
25 14 0.84 1.66 1.92
30 15 0.93 1.58 1.83



Related Articles & Videos

Articles

Videos

Brand:
Rain Bird
Type:
Variable Adjustable Nozzle
Max PSI:
30 PSI
Operating PSI:
15 - 30 PSI
Warranty:
3 Years
Spray Pattern:
Adjustable Arc
Connection:
Female
Spray Radius:
15 ft
Specifications (654.81 kB)
