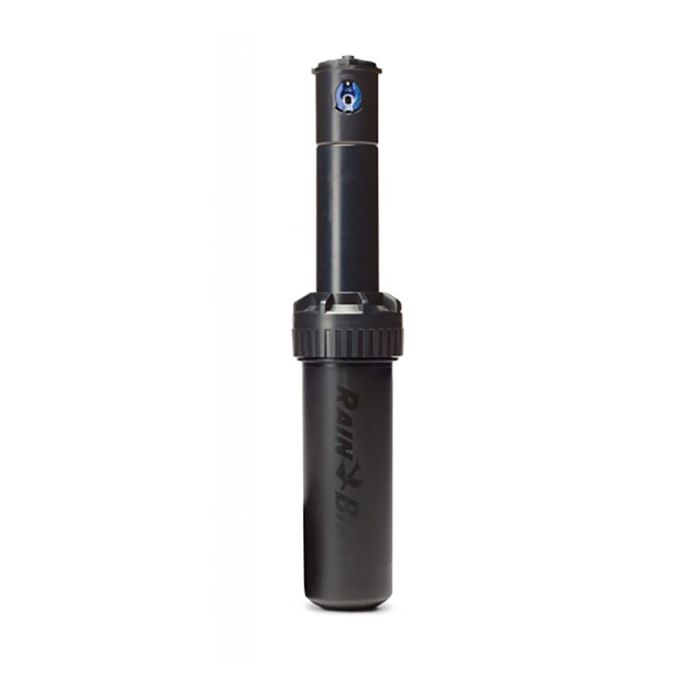

Rain Bird Pressure Regulated Rotor 4 in. | 5004-PC-R

In stock
SKU
5004-PC-R
Free Shipping on Orders over $149
Sales Price $14.95 Our Price $30.95 You save 52%
Case of 20
$14.65 / each
Pallet of 800
$14.35 / each

Rain Bird Pressure Regulated Rotor 4"

  • Rain Bird Pressure Regulated Rotor
  • Series: 5000
  • Pop-Up Height: 4 in.

Features & Benefits

  • In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance
  • PRS saves water by:
  • Eliminating head-to-head pressure variations
  • Eliminating misting due to high pressure
  • Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
  • Maintenance-free design can be easily retrofitted into existing 5000/5000 Plus, T-Bird and Hunter® PGP (using UPG model) rotor cases without digging up the entire body
  • Pressure: 25 - 45 psi

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird® 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet.

Outstanding Results

Superior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout.

Superior Wind Resistance

The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in Watering

Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

Product Details

  • 4 in. 5000 Series Part-Circle Pattern Pop-up Rotor with PRS Pressure Regulation
  • Faster maintenance with a new self-cleaning arc adjustment screw
  • Heavy-duty cover assembly for extra durability
  • Rain Curtain™ Nozzles
  • Slip clutch mechanism for quick adjustment on installation
  • Heavy-duty retract spring assures positive pop-down
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • 40 - 360 degree arc rotation and reversing full circle rotation in one
  • Radius adjustment screw allows up to 25% radius reduction without changing nozzles
  • Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
  • Reinforced flow path for additional side load strength
  • Additional O-rings and seals for extra protection in "gritty" water
  • Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance

Related Articles & Videos

Articles

Videos

Standard Angle Rain Curtain Nozzle Performance

PRESSURE PSI NOZZLE RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
25
1.5 33 1.12 0.20 0.23
2.0 35 1.50 0.24 0.27
2.5 35 1.81 0.28 0.33
3.0 36 2.26 0.34 0.39
4.0 37 2.91 0.41 0.47
5.0 39 3.72 0.47 0.54
6.0 39 4.25 0.54 0.62
8.0 36 5.90 0.88 1.01
35
1.5 34 1.35 0.22 0.26
2.0 36 1.81 0.27 0.31
2.5 37 2.17 0.31 0.35
3.0 38 2.71 0.36 0.41
4.0 40 3.50 0.42 0.49
5.0 41 4.47 0.51 0.59
6.0 43 5.23 0.54 0.63
8.0 43 7.06 0.74 0.85
45
1.5 35 1.54 0.24 0.28
2.0 37 2.07 0.29 0.34
2.5 37 2.51 0.35 0.41
3.0 40 3.09 0.37 0.43
4.0 42 4.01 0.44 0.51
5.0 45 5.09 0.48 0.56
6.0 46 6.01 0.55 0.63
8.0 47 8.03 0.70 0.81
55
1.5 35 1.71 0.27 0.31
2.0 37 2.30 0.32 0.37
2.5 37 2.76 0.39 0.45
3.0 40 3.47 0.42 0.48
4.0 42 4.44 0.48 0.56
5.0 45 5.66 0.54 0.62
6.0 47 6.63 0.58 0.67
8.0 50 8.86 0.68 0.79
65
1.5 34 1.86 0.31 0.36
2.0 35 2.52 0.40 0.46
2.5 37 3.01 0.42 0.49
3.0 40 3.78 0.45 0.53
4.0 42 4.83 0.53 0.61
5.0 45 6.16 0.59 0.68
6.0 48 7.22 0.60 0.70
8.0 50 9.63 0.74 0.86



Low Angle Nozzle Performance

PRESSURE PSI NOZZLE RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
25
1.0 LA 25 0.76 0.22 0.26
1.5 LA 27 1.15 0.30 0.35
2.0 LA 29 1.47 0.34 0.39
3.0 LA 29 2.23 0.51 0.59
35
1.0 LA 28 0.92 0.21 0.25
1.5 LA 30 1.38 0.30 0.34
2.0 LA 31 1.77 0.35 0.41
3.0 LA 33 2.68 0.47 0.55
45
1.0 LA 29 1.05 0.23 0.26
1.5 LA 31 1.58 0.32 0.37
2.0 LA 32 2.02 0.38 0.44
3.0 LA 35 3.07 0.48 0.56
55
1.0 LA 29 1.17 0.25 0.29
1.5 LA 31 1.76 0.35 0.41
2.0 LA 33 2.24 0.40 0.46
3.0 LA 36 3.41 0.51 0.58
65
1.0 LA 29 1.27 0.27 0.32
1.5 LA 31 1.92 0.38 0.44
2.0 LA 33 2.45 0.43 0.5
3.0 LA 36 3.72 0.55 0.64
More Information
Brand Rain Bird
Pop-Up Height 4 in.
Check Valve No Check Valve
Flow Control No Flow Shut-Off
Riser Material Plastic
Type Rotor
Application Residential And Commercial
Body Height 7-3/8
Inlet Size 3/4 in.
Pressure Range (PSI) 25-65
Warranty 5 Years
Spray Pattern Part Circle Adjustable (40 - 360)
Spray Radius 25 ft. - 50 ft.
Advanced Features Pressure Regulation
Brochure (975.33 kB)
Extra Info (263.36 kB)
Manual (1.38 MB)
Specifications (558.12 kB)
